2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic

Ürünler

fiber optik sonlandırma kutusu

SFP modülü

Bizimle İletişim

sales@yingdapc.cn

+86 18688982406

Şimdi iletişime geçin

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic

Adedi:	100PCS
fiyat:	1.0USD-18.6USD
Standart paketleme:	1pc in a box, 10 pcs per carton box
Delivery period:	6days
Ödeme yöntemi:	Western Union, MoneyGram, T/T
Tedarik Kapasitesi:	5000pcs/month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO,SGS

Model Number

FDB0216A

material:

ABS, PC

color:

black

ftth drop cable:

16 pcs

cable ports:

2in 16out

plc splitter:

1x2, 1x4,1x8,1x16

adapter:

SC, LC duplex

max splicing:

24 fibers

application:

wall or pole mounting

Vurgulamak:

Fiber Optik Kapanması

Optik dağıtım kutusu

Ürün Tanımı

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 16Ports

Model: FDB0216A

FDB0216A Optical Termination Box is a high density wall mounted solution for FTTH next generation networks, it provide and manage maximum 16cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application.

Feature

It is made of high impact plastic material, high strength, good performance
Can accommodate 1x8 1x16 mini module PLC splitter with SC Connector
Anti-UV, Ultra violet resistant and rainfall resistant.
Wall mounted, pole mounted
Max. Hold 16pcs SC or LC duplex adapters
2 pcs un-cut cable port, 16 pcs FTTH drop cable outports
Pre-install SC adapter or micro splitter, pigtails available.
Indoor and outdoor use

FDB0216A Termination Box DIECUT

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 0

FDB0216A Termination Box 3D drawing -- UNCUT CABLE PORT

(the feeder cable go through the box no need cutting, easy for on-site installation)

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 1

Application

Telecommunication Networks
WAN,LAN ,CATV Networks
Data communications Networks
FTTH access terminal network (FAT)

Specifications:

Model	FDB0216A
Material	ABS
Size(WHD)	260320115mm
Max capacity	16 fibers
Adapter qty	16 x SC
PLC splitter	1x2,1x4,1x8,1x16 micro splitter
Color	White, black, gray

Packing information:

Model	QTY/CTN	CTN size	N.W/CTN	G.W/ CTN
FDB0216A	10pcs	563663cm	1.48	16.5kgs

How to install

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 3

Steps:

1.insert small diameter of cable and fix it, fig. 1

2. connect the cable with splitter input cable by fusion splicing or mechanical splicing. fig. 2

3. fix 1x8 and 1x16 splitter, fig. 3

4. connect splitter ribbon fibers with output pigtails that coated loose tube, fig. 4

5. fix the arranged ouput pigtails with losse tube to tray, fig. 5

6. lead output pigtails to the other side of the tray, and insert adapter , fig. 6.

7. pre-insert optical drop cables to outlet holes in order, then seal it b soft block. fig. 7

8. pre-installed field assembly connector of drop cable, the insert connectors to optical adapter in order and tie it by cable ties. fig. 8

9. close the cover, finish installation. fig. 9

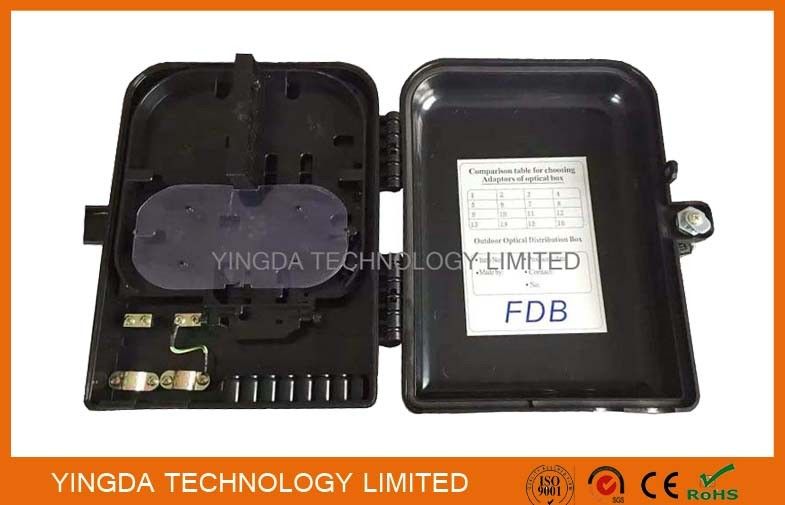

EMPTY BOX SHOW:

2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 5

Our advantages

1.The most competitive price

2.We are eager to establish long-term cooperation relationship with every customer,so we're responsible for our quality.we provide 3 years warrranty

3.We provide one-stop FTTH Solution Products.besides, we can help you design unique new products and put into production.We care about innovation and would like to change for you and grow up with you.

4.With our own R&D, more completed production lines, advanced production & testing equipments,experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.

5.For your any queries or inquiries,we will try to reply you within 3 hours

Puanlar ve İncelemeler

Genel Değerlendirme

5.0

Bu tedarikçi için 50 incelemeye göre

Derecelendirme Anlık Görüntüsü

Aşağıdaki tüm oyların dağılımıdır

5 yıldızlar

100%

4 yıldızlar

3 yıldızlar

2 yıldızlar

1 yıldızlar

Tüm Yorumlar

P*e

South Korea Jan 31.2025

Yardımsever (5)

It was sent very quickly Service: Good service from my salesperson. And low IL ≤0.35dB

C*s

France Nov 19.2024

Yardımsever (2)

Product was exactly as in pictures with good quality and packing.

E*n

Chile Aug 23.2023

Yardımsever (9)

Good quality, IP65 waterproof. will continue to cooperate with YINGDA
