Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member

Adedi:	100PCS
fiyat:	0.36USD-30USD
Standart paketleme:	1 piece / bag

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO,SGS,ROHS

Model Number

FHPC-SCU-01-F8F-A1W-01

Application:

FTTH indoor wiring

Connector:

SC / UPC

fiber count:

1 core

fiber type:

G657A1 or G657A2

Cable sheath:

Cable length:

1 meter

Cable color:

white

insertion loss:

<0.3dB

Cable strength member:

FRP (Fiber Reinforced Polymer/Plastic)

drop cable diameter:

2*3.0mm

Ürün Adı:

Fiber kablo, fiber optik ara kablolar, fiber optik ara kablolar, fiber optik atlama telleri, fiber o

Vurgulamak:

fiber optic patch cable

fiber optic jumper

Ürün Tanımı

Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member

FTTH SC/PC patch cord is FTTH cable terminated bothh end with SC connector. Also FC/ST/LC connector can be

choosed as customer request. Fiber is avaibale with G652D or G657A. Cable Jacket can optional as white or balck.

Features

Low-bend-sensitivity fiber,high bandwidth,excellent communication transmission property;
Two parallel FRP strength members ensure good performance of crush resistance
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.

Application

Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation

Specification

Item	SC FC ST LC drop cable PATCH CORD
IL(dB)	≤0.2	Max IL(dB)	≤0.3
Working temperature(°C)	-40~+80	Temperature cycle(°C)	-40~+75
Storage temperature(°C)	-40~+85	Interchangeability (dB)	≤0.2
Plug times	1000 times	Repeat ability(dB)	≤0.1
RL (dB)	≥45 ≥50 ≥60	Immersion	Temperature 43°C, PH5.5 for 7days

Delivery Length:

1-300METERS / PACK

Order information

FHPC-XXX-XX-XXX-XXX-XX

1 - 2 - 3 4 - 5 6 - 7

FHPC

Connector

type

Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2

W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...

More Photos

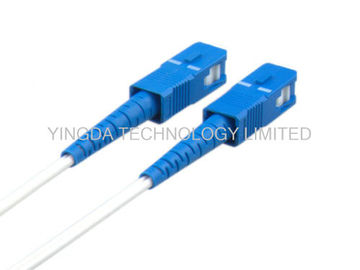

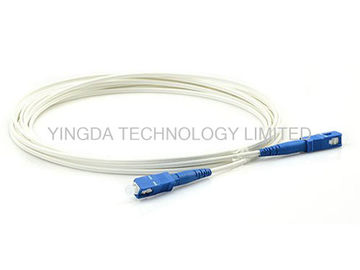

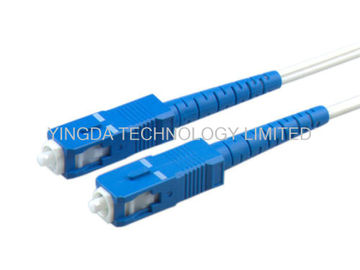

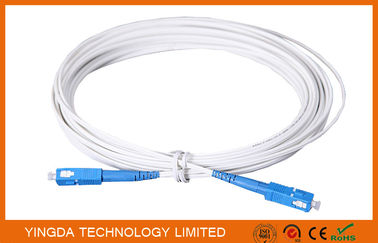

Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member 0
