FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1

Name: FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FHPC-SCU-01-F8F-A1W-01
Price: 14.36 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	FHPC-SCU-01-F8F-A1W-01
Adedi:	100PCS
fiyat:	0.36USD-30USD

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO,SGS,ROHS

Application:

FTTH indoor wiring

Connector:

SC / UPC

fiber count:

1 core

fiber type:

G657A1 or G657A2

Cable sheath:

LSZH

Cable length:

1 meter

Cable color:

white

insertion loss:

<0.3dB

Cable strength member:

FRP (Fiber Reinforced Polymer/Plastic)

drop cable diameter:

2*3.0mm

Ürün Adı:

Fiber kablo, fiber optik ara kablolar, fiber optik ara kablolar, fiber optik atlama telleri, fiber o

Packaging Details:

1 piece / bag

Vurgulamak:

fiber optic patch cable

fiber optic jumper

Ürün Tanımı

FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1

FTTH SC/PC patch cord is FTTH cable terminated bothh end with SC connector. Also FC/ST/LC connector can be choosed as customer request. Fiber is avaibale with G652D or G657A. Cable Jacket can be white or balck.

Features

LC SC ST FC connectors available
FTTH fast connector can be used.
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.

Application

Used as access building cable
Used in indoor cabling especially used for FTTH

Specification

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

Delivery Length:

1-300METERS / PACK

Order information

FHPC-XXX-XX-XXX-XXX-XX

1 - 2 - 3 4 - 5 6 - 7

FHPC

Connector

type

Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2

W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...

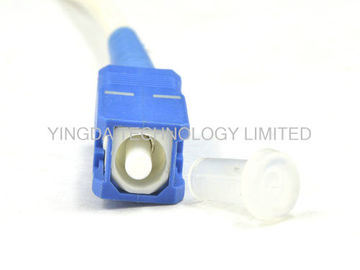

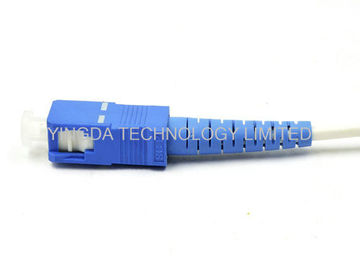

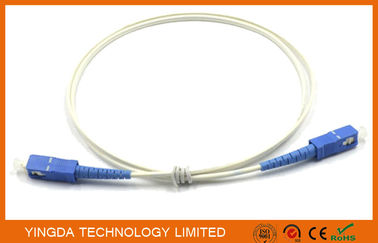

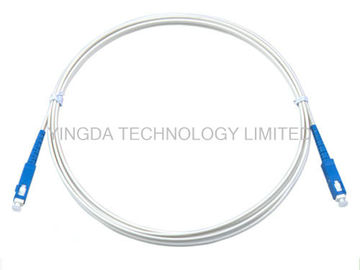

More Photos

FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1 0
