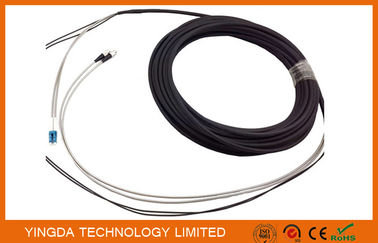

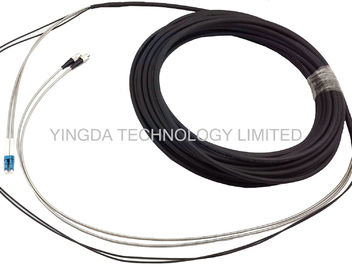

DFC - DLC 2 Core FTTA Fiber Optic Patch Cord White And Black

Adedi:	10pcs
fiyat:	0.36USD-30USD
Standart paketleme:	1pc/pack

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO SGS CE ROHS

Model Number

LC-FC duplex

application:

cable:

base station cable 7.0mm GYFJH

cable jacket:

black LSZH

connector:

LC FC

fiber count:

2 cores

length:

on customer request

logo:

Ürün Adı:

Fiber kablo, fiber optik ara kablolar, fiber optik ara kablolar, fiber optik atlama telleri, fiber o

Vurgulamak:

fiber optic patch cable

fiber optic jumper

Ürün Tanımı

DFC - DLC 2 Core FTTA Fiber Optic Patch Cord White And Black

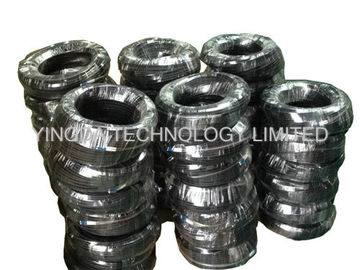

1. GYFJH Cable

DFC - DLC 2 Core FTTA Fiber Optic Patch Cord White And Black 0

1.1 Structure:

DFC - DLC 2 Core FTTA Fiber Optic Patch Cord White And Black 1

1.2 Application

Mainly used in wireless base station horizontal and vertical cabling

1.3 Features

1, Good mechanical and environmental characteristics;

2, Flame retardant characteristics meet the requirements of relevant standards;

3, The mechanical characteristics of jacket meet the requirements of relevant standards;

4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data

transmission;

5, Meet various requirements of market and clients

1.4 Cable Parameters

Fiber count	Cable dimension	Cable weight	Tensile/N		Crush N/100mm		Min. Bend radius/mm		Range of temperature/°C
	Mm	Kg/km	Long term	Short term	Long term	Short term	Dynamic	Static
2	7	42.3	200	400	1100	2200	20D	10D	-100
Note:
1. All the values in the table,which are reference only, are subject to change without notice.
2. The cable dimension and weight are subject to the simplex cable of 2.0mm outer diameter;
3. D is outer diameter of the round cable.

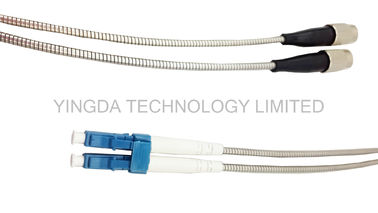

1.5 Connector Specification

Item	Parameter
Connector	DLC/UPC
Insertion loss	≤0.3dB
Return loss	≥35dB
Fiber mode	Multi-mode,50/125um
Operating wavelength	850nm,1310nm
Test wavelength	850nm,1310nm
Repeat ability	≤0.1dB
Interchange ability	≤0.2dB
Durability	≤0.2dB
Fiber length	1m,2m.. Any length optional
Length and tolerance	10cm
Operating temperature	-40~+85°C
Storage temperature	-40~+85°C
