New Fiber Optic PLC Splitter Plug-in type 1x8 LGX box card insert with SC/UPC Connector module in Telecommunication systems

Name: New Fiber Optic PLC Splitter Plug-in type 1x8 LGX box card insert with SC/UPC Connector module in Telecommunication systems
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDPLC-LGX-208LU
Price: 2.10 USD
Availability: InStock

Marka Adı:	yingda
Model Numarası:	YDPLC-LGX-208LU
Adedi:	1 adet
fiyat:	1.1USD-4.58USD
Teslim Zamanı:	5 gün
Ödeme Şartları:	T/T, Western Union, MoneyGram, L/C

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Kutu boyutu:

130×100×50mm

Malzeme:

alev geciktirici abs

Renk:

Gri

Kablo bağlantı noktası:

18 bağlantı noktası, 2 giriş, 16 çıkış

Ayırıcı tipi:

1x16 2x16 fiber potik ayırıcı

Elyaf Tipi:

tek mod 9/125um

Gevşek tüp:

0,9 mm çapında beyaz

Bağlayıcı:

SC LC

Ambalaj bilgileri:

1 adet/plastik torba, 40 adet/karton kutu

Vurgulamak:

Fiber Optic PLC Splitter 1x8 LGX box

PLC Splitter SC/UPC connector module

Telecommunication fiber optic splitter plug-in

Ürün Tanımı

Plug-in Type PLC Splitter 1X8 with SC UPC Connector, 2.0mm cable for inlet port 0.9mm cable for outlet port

Plug-in type PLC splictter also called LGX PLC splitter used to distribute or combine optical signals in FTTH deployment. It’s usually installed in the wall mount Fiber optic distribution box to save time & space and provides reliable protection for the fiber optic cores.

YINGDA offers a variety of 1xN and 2xN PLC splitters in plug-in type. Their compact structure and small volume make them convenient for use in various places, such as 19-inch racks, cross-connect cabinets, and other devices. Our fiber splitters offer outstanding optical performance and reliability, meeting GR-1221-CORE and GR-1209-CORE specifications.

LGX Box Dimension:

Splitting ratio	Dimension (H×W×D)mm
1x2 / 2x2 (Inserts)	130×100×25
1x4 / 2x4 (inserts)
1x8 / 2x8(Inserts)
1x16 / 2x16 (Inserts)	130×100×50
1x32 / 2x32 (Inserts)	267×100×50

Product details:

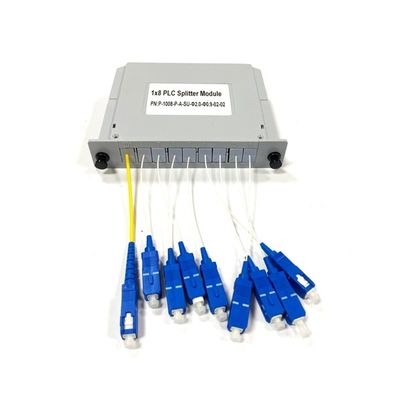

New Fiber Optic PLC Splitter Plug-in type 1x8 LGX box card insert with SC/UPC Connector module in Telecommunication systems 0

Box overview:

box size:130×100×50mm, small size, large capacity, can use maximum 2x32LC SC plc splitter with connectors lid and bottom is connected with 2screws on the top, we can make OEM logo on the label to make better marketing.

Integrated design

The LGX box type of PLC splitter integrates the light splitter, which greatly facilitates
the construction of the project and reduces the damage caused by the improper construction or storage of the conventional box splitter.

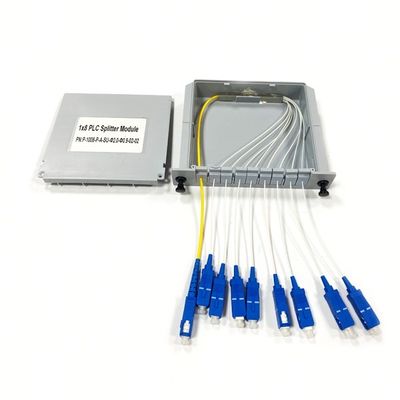

New Fiber Optic PLC Splitter Plug-in type 1x8 LGX box card insert with SC/UPC Connector module in Telecommunication systems 2

Details:

front adapter panel: there is 123456... 16 and IN1 IN2 mark for better construction and fiber count. steel tube fix place is specially deisgn, with glue to make it more stable during transporation.enough fiber storage and wiring space, reasonable fiber bend radius.

Inlet and outlet port with connector and cable, direct connecting to your device, no need aother adapter, save your cost and reduce losses during connection.

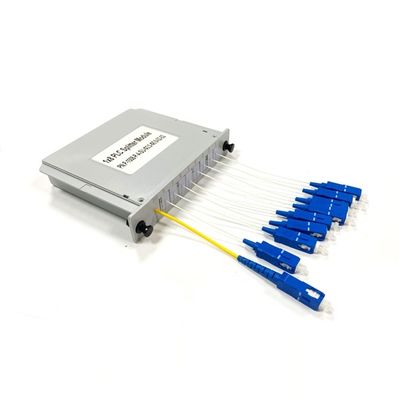

New Fiber Optic PLC Splitter Plug-in type 1x8 LGX box card insert with SC/UPC Connector module in Telecommunication systems 4

Package:

suggest to use 1piece / cardboard box, but if u need cost effective, plastic bag will be ok, then about 10 or 20pcs will be in a small cardboard, it will be ok to protect the item in good condition.

welcome OEM or ODM.

Application:

CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband

New Fiber Optic PLC Splitter Plug-in type 1x8 LGX box card insert with SC/UPC Connector module in Telecommunication systems 6

Order information:

PLC-LGX-XXX/XXX

- 1 / 2

PLC

1 Split ratio

2 connector in/out port

LGX Modular

102=1*2

104=1*4

...

SA=SC/APC

SU=SC/UPC

ST=ST

...

YINGDA 'S PLC Splitter production line

New Fiber Optic PLC Splitter Plug-in type 1x8 LGX box card insert with SC/UPC Connector module in Telecommunication systems 7

1.Advanced production and testing equipment

Professional manufacturer. 100% tested
Full compliance with IS0 9001:2008 quality managemen system
Our company has experienced professional team
Provide reliable solutions and satisfactory services
Warmly services with careful attentions
Can provide your specific inquiry within 24 hours Advanced production and testing equipment.
