Fiber Optical Splitter 1x8 ABS G657A1 0.9MM Inlet and Outlet Cable with SC/APC for GPON/EPON Compatible 4G 3G

Name: Fiber Optical Splitter 1x8 ABS G657A1 0.9MM Inlet and Outlet Cable with SC/APC for GPON/EPON Compatible 4G 3G
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDPLC-AM-108-SASA-0.9MM
Price: 2.10 USD
Availability: InStock

Marka Adı:	yingda
Model Numarası:	YDPLC-AM-108-SASA-0.9MM
Adedi:	10 adet
fiyat:	1.1USD-4.58USD
Teslim Zamanı:	7 gün
Ödeme Şartları:	L/C, T/T, Western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Sertifika:

ISO

Malzeme:

Plastik

Fiber modu:

Teker

Fiber uzunluğu:

giriş:1,5 metre, çıkış:1,5 metre

Bağlayıcı tipi:

SC/APC,0.9mm Kablo

Başvuru:

PON, FTTH, ODN Ağı

Kurulum:

Fiber optik raf montaj yama bölmesi, ekleme kapanması veya dolap

Abs kutusu boyutu:

100*80*18mm

Çırpınlı ceket:

Lszh

Fiber rengi:

çıkış: Renkli, giriş: Beyaz

Ambalaj bilgileri:

1 adet/kutu, 100 adet/karton kutu

Yetenek temini:

Aylık 20000 pcs

Ürün Tanımı

Fiber Optical Splitter 1x8 ABS G657A1 0.9MM Inlet and Outlet Cable with SC/APC for GPON/EPON Compatible 4G 3G

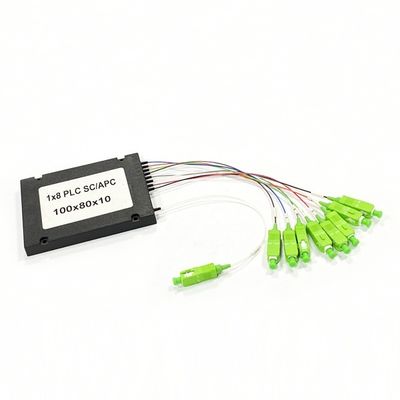

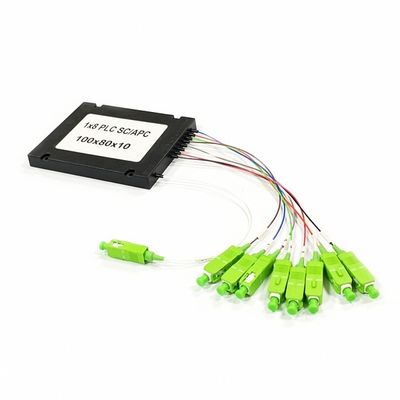

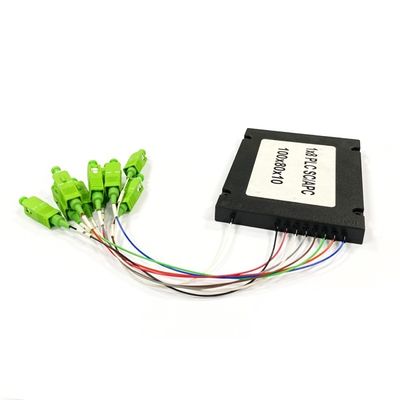

1x8 ABS PLC Optical Splitter Module SC/APC Single mode G657A1 LSZH 0.9mm Colored Blister Pack

1X8 ABS SPLITTER is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
ABS PLC splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products (outdoor fiber distribution box) or network cabinets.

Yingda can offer 1x2 1x4, 1x8, 1x16, 1x32 1x64 split ratio, and package be mini module, ABS module, LGX modular, rack type, or closure type of optical plc splitters on different application.

Fiber Optical Splitter 1x8 ABS G657A1 0.9MM Inlet and Outlet Cable with SC/APC for GPON/EPON Compatible 4G 3G 0

Technical specification

Optical Performance		Unit	Specification
Insertion Loss (without Connector)	MAX	dB	3.9
Insertion Loss of Connector	MAX	dB	0.1
Insertion Loss (with Connector)	MAX	dB	4.1
Uniformity Loss	MAX	dB	0.6
Polarization Dependent Loss	MAX	dB	0.3
Wavelength Bandwidth	MIN	nm	1260~1650
Return Loss (All Port)	MIN	dB	50
Directivity	MIN	dB	55
Operating Temperature	oC	dB	-40~85
Labelling (Label Material & Dimension)	-		75*50(mm)
Serialization (Laser Marking or others)	-		Label
PLC Splitter Packing	-		ABS Plastic Box
Package Diemension	-		1080100(mm)
Fiber Type	-		G657A1
Fiber Color	-		Input: Original Output: Original
Fiber Color	-		Input: Original Output: Original
Tube Type	-		Φ0.9, LSZH
Tube Color	-		Input: Yellow Output: Yellow
Tube Color	-		Input: Yellow Output: Yellow
Connector Type	-		Input: FC/APC Output: FC/APC
Connector Type	-		Input: FC/APC Output: FC/APC
Individual Test Data Sheet Format	Hardcopy		1310, 1490, 1550nm ILUFPDL

Product Details

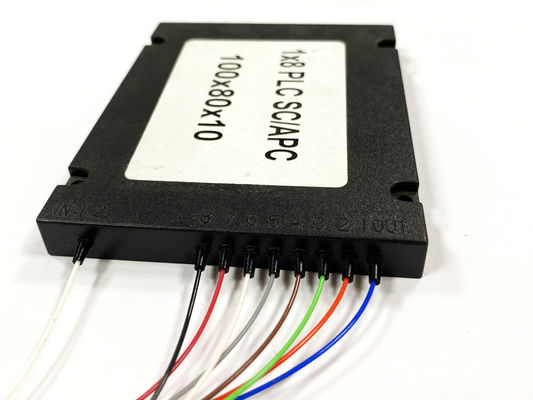

The box itself is printed with IN, OUT and number 1345678, which is convenient to identify the inlet and outlet and optical fiber classification, maintenance and luminous test.
Fiber Optical Splitter 1x8 ABS G657A1 0.9MM Inlet and Outlet Cable with SC/APC for GPON/EPON Compatible 4G 3G 1

There is a white indication ring at the inlet and outlet of the optical cable, which is fast and easy to find the fiber that we need.

We can make custome LOGO oem stickers here, or with our netural labels as below, include product name, part number, and serial number, etc.
If customer have special request, please let us know.

Fiber Optical Splitter 1x8 ABS G657A1 0.9MM Inlet and Outlet Cable with SC/APC for GPON/EPON Compatible 4G 3G 3

Package information:

TYPE 1: BLISTER BOX-- 1PC individual package, with test report in each box, this will ease the on-site construction, only need to open the cover and take the splitter out, fast and simple, also good protection for the splitters, nice view.

TYPE 2: Cardboard Box-- several quantity in a cardboard box, but with foam at top and bottom, and left right with slots on foam to protect the splitter connectors in place, good protection, dust proof, with test report in each box.

Applications:

Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment

Fiber Optical Splitter 1x8 ABS G657A1 0.9MM Inlet and Outlet Cable with SC/APC for GPON/EPON Compatible 4G 3G 6

Features:

Low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
Telcordia GR-1221 and GR-1209

Order information

Model	Split ratio	Box size / mm	Connectors
YDPLC-AM-102	1X2	1008010	SC/UPC=SU
YDPLC-AM-104	1X4	1008010	SC/APC=SA
YDPLC-AM-108	1X8	1008010	FC/UPC=FU
YDPLC-AM-116	1X16	1208018	FC/APC=FA
YDPLC-AM-132	1X32	1208018	LC/UPC=LU
YDPLC-AM-164	1X64	100406	LC/APC=LA
YDPLC-AM-202	2X2	1008010	...
YDPLC-AM-...	...	...	...
