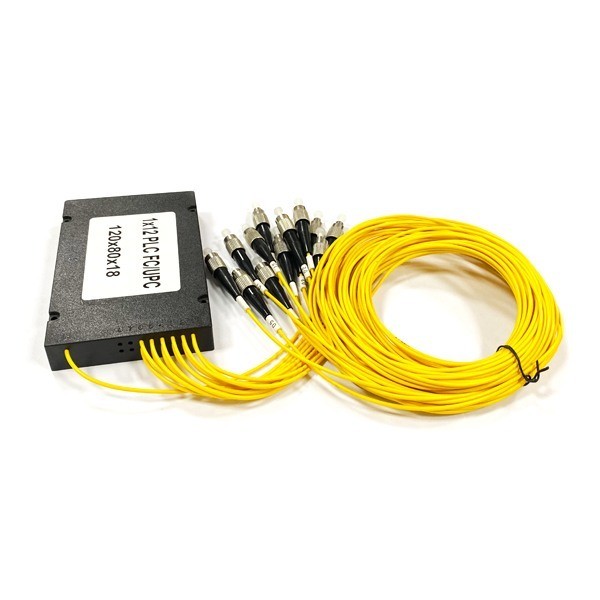

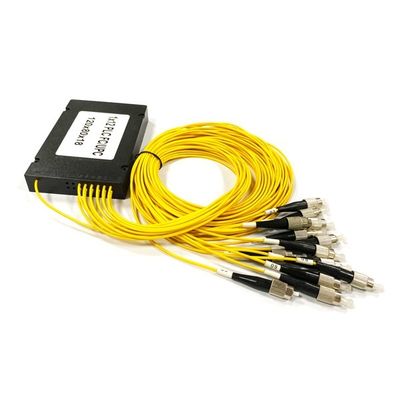

High Quality FTTH 1x12 FC Connector Fiber Optical Box Distributor ABS Box PLC Splitter For Rack Patch Panel

Name: High Quality FTTH 1x12 FC Connector Fiber Optical Box Distributor ABS Box PLC Splitter For Rack Patch Panel
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YD-PLC-LG-108-FC-15
Price: 2.10 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	YD-PLC-LG-108-FC-15
Adedi:	50 adet
fiyat:	1.1USD-4.58USD
Teslim Zamanı:	Ödeme yapıldıktan sonra 5-8 gün

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Sertifika:

ISO SGS ROHS

Bağlayıcı:

FC SC LC ST her şey yolunda

lif türü2:

G657A1, G652D köşeli fiber SMF-28e

Ekleme kaybı:

10,2 / 10,5 dB

Tekdüzelik (Maks.):

1,5 dB

Dalga boyu:

1260 - 1650nm

PDL(Maks.):

0,2 dB

Modül boyutu:

100×80×10mm

Kare tüp boyutu:

40×4×4mm

Düz tüp boyutu:

60×7×4mm

Fiber uzunluğu:

1.5 Metre

Kablo çapı:

2.0mm

Ambalaj bilgileri:

1pc/kutu

Yetenek temini:

Ayda 10.000 PC

Ürün Tanımı

High Quality FTTH 1x12 FC Connector Fiber Optical Box Distributor ABS Box PLC Splitter For Rack Patch Panel

Fiber Optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features

Low Insertion Loss & PDL
High Isolation
Compact size
Good channel-to-channel uniformity
Wide Operating Wavelength 1260-1650nm
High Reliability and Stability

Compliance

Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

Specification

Table 1 – 1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(Min/Max)	3.8/4.0	7.2/7.4	10.5/10.7	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.6	0.6	0.8	1.2	1.5	2.5
Return Loss (dB)	55	55	55	55	55	55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Operating Temperature (℃)	-40～+85
Storage Temperature (℃))	-40～+85
Operating Humidity	5% ~ 85% RH
Storage Humidity	5% ~ 85% RH
Device Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm) (L×W×H)	50×7×4	50×7×4	60×7×4	60×12×4	80×20×6	N/A

 Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(Min/Max)	3.9/4.2	7.5/7.8	11.2/11.5	14.2/14.5	17.2/17.7	21.0/21.5
Loss Uniformity (dB)	0.8	1.5	1.5	1.8	2.0	2.5
Return Loss (dB)	55	55	55	55	55	55
Polarization Dependent Loss(dB)	0.2	0.2	0.4	0.4	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Operating Temperature(℃))	-40～+85
Storage Temperature (℃))	-40～+85
Operating Humidity	5% ~ 85% RH
Storage Humidity	5% ~ 85% RH
Device Dimension (mm) (L×W×H)	40×4×4	50×4×4	50×4×4	50×7×4	60×7×4	60×12×4
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm) (L×W×H)	60×7×4	60×7×4	60×7×4	60×12×4	80×20×6	N/A

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB) (S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18

Notes

Specified without connectors.
Add an additional 0.2dB loss per connector.
1x64,1x128,2x64 also can be offered

.Application

FTTH
PON Network
CATV Links
Communication Equipment

High Quality FTTH 1x12 FC Connector Fiber Optical Box Distributor ABS Box PLC Splitter For Rack Patch Panel 0

lx12 Splitting,SC/APC onnector.

Low insertion loss,low polarization dependent loss low back reflection.

Compact Structure
Small size,it can be directly installed in a variety of transfer box and just take up little space.

Excellent Quality Chips

Loss of light is not sensitive for wavelength and it can meet the transmission needs of different wavelengths

High Quality FTTH 1x12 FC Connector Fiber Optical Box Distributor ABS Box PLC Splitter For Rack Patch Panel 2

Support
