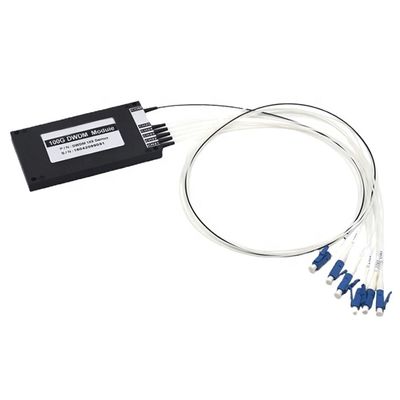

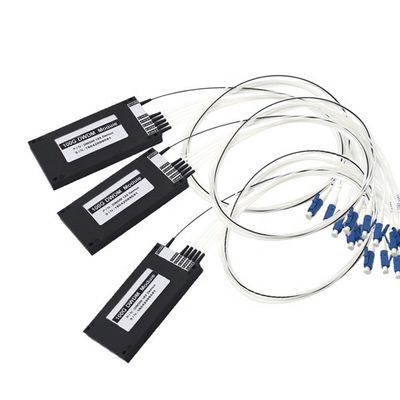

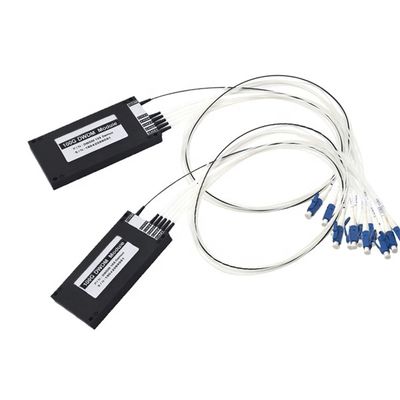

100GHz 1×5 DWDM Mux/Demux AWG 40 Channel C-Band with LC/UPC Single Fiber Plastic ABS Box Module

Name: 100GHz 1×5 DWDM Mux/Demux AWG 40 Channel C-Band with LC/UPC Single Fiber Plastic ABS Box Module
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 5CH DWDM 1X5
Price: 2.10 USD
Availability: InStock

Marka Adı:	Yingda
Model Numarası:	5CH DWDM 1X5
Adedi:	100pcs
fiyat:	1.1USD-4.58USD
Teslim Zamanı:	7days
Ödeme Şartları:	T/T,Western Union,MoneyGram

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

china

Sertifika:

ISO

reflection:

1310/1490nm

transmition:

1550nm

connector type:

LC SC FC

fiber type:

SMF-28e

package:

blister box, 1pc/ box

Product name:

Fwdm Dwdm Cwdm

Network:

Wired LAN, 4g, 3G

Fiber count:

4/8/16/32

Packaging Details:

1pc/box, 10pcs/master box

Supply Ability:

20000pcs per month

Vurgulamak:

1×5 DWDM Mux/Demux

LC/UPC DWDM Mux Demux

40 Channel DWDM Mux/Demux

Ürün Tanımı

Description

DWDM is dense wavelength division multiplexing, a fiber optics technology for connecting multiple channels over a dark fiber pair using a multiplexer. It maximizes fiber usage and help organizations meet growing demands without laying or leasing more fiber until it's absolutely necessary.

Mux CWDM Module Features

~ 40CH 100G AWG Moduie (40CH 100G DWDM Mux Demux)
~lnsertion Loss Ripple:1.0db
~Optical Returnloss:40db
~Band: C-Band, L-Band, C+L-Band, Customize is optional
~Number of Channeis:16CH,32CH,40CH,48CH,Special is optional
~Spacing:50G,100G,200G,Special is optional
~Filter Shape: Gaussian, Broad Gaussian, Flat Top is optional
~Package: Module, Rack, Special is optional
~Fiber Length:0.5m,1m,1.5m,2m,2.5m,3m,Specify is optional
~ln/Out Connector:None,FC/APC,FC/PC,SC/APC,SC/PC,LC/APC,LC/PC,ST/UPC,Specify is optional

WDM Module Application

üBroadband networks

üPON Networks

üCATV system

üCWDM system

üFiber amplifier

CWDM Mux Demux Module Specification

Parameters		2CH		4CH	8CH		16CH
Operating Wavelength (nm)		1500~1570
Channel spacing(GHz)		100G(Cband)
Center Wavelength		C31 → C34			C34 → C31
Center Wavelength Accuracy (nm)		+/-0.08
Pass band (nm)		ITU±0.11
Port Insertion Loss (dB)		<1.2	<1.8		<2.8	<3.8
Isolation (dB)	Adjacent	>30
	Non-adjacent	>40
Ripple (dB)		＜0.5
PDL (dB)		<0.2
RL (dB)		>45
Directivity (dB)		>50
Power (mw)		<300
Fiber Type		G657A1 of 0.9mm loose tube
Fiber Length (m)		1.0
Connector		LC/UPC
Operating Temperature (℃)		-20~+75
Storage Temperature (℃)		-40~+85
Housing(mm)		1008010/1208018/11411518

NOTE:

All specifications include all states of polarization and all operating temperature and all wavelength ranges specified.

All the data are without connectors, insertion loss of one pair conector is less than 0.3dB.

Structure Diagram (Refer to the below)

100GHz 1×5 DWDM Mux/Demux AWG 40 Channel C-Band with LC/UPC Single Fiber Plastic ABS Box Module 0

WDM Box Mechanical Dimensions (Refer to the below)

100GHz 1×5 DWDM Mux/Demux AWG 40 Channel C-Band with LC/UPC Single Fiber Plastic ABS Box Module 1

YINGDA Production line:

100GHz 1×5 DWDM Mux/Demux AWG 40 Channel C-Band with LC/UPC Single Fiber Plastic ABS Box Module 2

100GHz 1×5 DWDM Mux/Demux AWG 40 Channel C-Band with LC/UPC Single Fiber Plastic ABS Box Module 4

YINGDA More FTTH Products

Fiber splitter box Fiber PLC splitter Fiber adapter Fiber fast connector

Fiber Cable Patch Cord&Pigtail MPO Cable AOC Cable

Questions & Answers

Q1. Could you offer samples?

Yes, samples are accepted.You need place sample order to us, and we will reduce from bulk order.

Q2. What's the delivery time for sample order?

Normally about 7days after confirmation.

Q3. What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Q4. Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo etc. for you.

Q5. What's the payment terms?

TT, WesternUnion, Escrow(secure payment), Trade assurance,Cash, etc.

Q6. Can I use my own LOGO and design on products?

YES, OEM is welcomed.

Q7. How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
