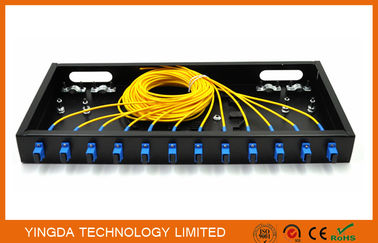

12 Port SC Complete Assembly Load Fiber Optic Patch Panel 19” ODF Black

Adedi:	50 pcs
fiyat:	Anlaşılabilir
Standart paketleme:	1 pc / box, 5 pcs / carton box

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

Model Number

GPRP-SC12

material:

cold rolled steel

thickness:

0.8mm,1.0mm, 1.2mm

capacity:

12 cores

connector port:

SC simplex

application:

optical distribution frame

installatino method:

rack mounted

color:

white, black

dimension:

480*200*1U mm

Vurgulamak:

rack mount odf

optik dağıtım çerçeve

Ürün Tanımı

12 Port SC Completed Assembly Loaded Fiber Optic Patch Panel 19” ODF Black

Description

Rack mount patch panel is mainly used for connection and storage between optical fiber cable and

pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.

Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U. Adapter panel can

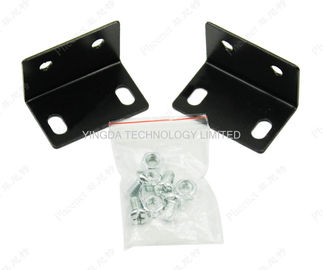

be simplex or duplex, and have ears to install in rack. It is smart design to supply firm protection

for optical cable terminal connection and optical fiber adapter installation. It is a combine of termi-

nation, protection, connection, management of fiber optic cables.

This rack mount patch panel have upper cover, when use, should un-screw the screws top side,

then take over the cover then you can manage the cable and fibers inside. Cable come inside

from back inlets, and output is adapter outlet.

Features

Flexible standard 19” cabinet installation
Complete front operations with double layers
Sufficient spooling area for redundant fibers
Spooling space available for fibers and pigtails to enhance protection for the fibers,
pigtails and connections
Adapter mounting bar available to hold multiple types of adapters like FC SC ST and LC
Complete bending radii protection

Technical specification:

ambient temperature	－25℃～＋40℃
relative humidity	≤85%(＋30℃)
atmospheric pressure	70kPa～106kPa
Insulation resistance	fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, the insulation resistance should > 2 x 104MΩ.
Dielectric strength	fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, under 15kV voltage for 1min without breakdown, no arcing phenomena.

Order information

Model	Dimension (mm)	Max Capacity (cores)
GPRP-SC12	480×200×1U	12
GPRP-SC24	480×200×1U	24
GPRP-SC48	480×200×2U	48
GPRP-FC12	480×200×1U	12
GPRP-FC24	480×200×1U	24
GPRP-FC48	480×200×2U	48
GPRP-ST12	480×200×1U	12
GPRP-ST24	480×200×1U	24
GPRP-ST48	480×200×2U	48

When order, pls tell us below details:

1. Full complete assembly (loaded) with adapter and pigtail OR empty panel optional

2. Box color: Black , White

3. adapter port is 1 line or 2line

12 Port SC Complete Assembly Load Fiber Optic Patch Panel 19” ODF Black 0

Puanlar ve İncelemeler

Genel Değerlendirme

5.0

Bu tedarikçi için 50 incelemeye göre

Derecelendirme Anlık Görüntüsü

Aşağıdaki tüm oyların dağılımıdır

5 yıldızlar

100%

4 yıldızlar

3 yıldızlar

2 yıldızlar

1 yıldızlar

Tüm Yorumlar

P*e

South Korea Jan 31.2025

Yardımsever (5)

It was sent very quickly Service: Good service from my salesperson. And low IL ≤0.35dB

H*d

Morocco Sep 6.2022

Yardımsever (5)

This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.

C*d

Ecuador Feb 26.2021

Yardımsever (3)

Excellent quality, as always! Fantastic product and service!
