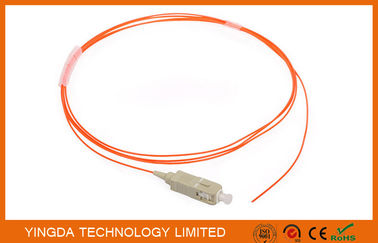

Fiber Optic Pigtail SC PC Mulitmode MM 62.5 / 125 um Simplex 0.9mm 1.5 Meter

Ürünler

fiber optik sonlandırma kutusu

SFP modülü

Bizimle İletişim

sales@yingdapc.cn

+86 18688982406

Şimdi iletişime geçin

Fiber Optic Pigtail SC PC Mulitmode MM 62.5 / 125 um Simplex 0.9mm 1.5 Meter

Adedi:	500 pcs
fiyat:	0.16USD-19.9USD
Standart paketleme:	1 pc/ bag, 1500pcs / carton box
Delivery period:	7days after payment
Ödeme yöntemi:	Western Union, T/T
Tedarik Kapasitesi:	200,000 pcs per month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO SGS ROHS

Model Number

FPC-SC-OM1625-09-1.5-O

connector:

SC PC

fiber count:

simplex

insertion loss:

< 0.3 dB

fiber type:

62.5/125 um OM1

package:

plastic bag

cable diameter:

900 um

jacket:

cable color:

orange

temperature:

-40~+85°C

customer logo:

wavelength:

1310nm, 850nm

Ürün Adı:

fiber optik pigtail, fiber optik pigtail, fo pigtall, fiber optik pigtail

Müşteri Logosu::

- Evet.

Vurgulamak:

fiber optik helezon

ribbon pigtail

Ürün Tanımı

Fiber Optic Pigtail SC PC Mulitmode MM 62.5 / 125 um Simplex 0.9mm 1.5 Meter

SC is short for square card, it can plug directly,easy to use, but also easy to drop out. SC Fiber Optic

Pigtail is a component installed in a fiber optic transmission system that reduce the power in the optical

signal. It is often used to limit the optical power received by the photo-detector to within the limits of the

optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.

It is used in the fiber transmission system .

Features

Low Insertion Loss
High Return Loss
Comply with YD/T 1272.4-2007 specification
Good Exchange ability
Good Repeat ability
High Temperature Stability

Application

CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX networks

Specification

Connector type	LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC. MU/AP Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4
Cable Type	Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Single mode Master) ≤ 0.25dB (For Single mode Standard) ≤ 0.25dB (For Multi-mode) Tested by JDS RM 3750
Return Loss (For Single mode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeat ability	±0.1dB
Operating Temperature	-40°C to 85°C
Geometry Requirement (For Single mode)	Ferrule End face Radius 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1

Ordering Information

SC / PC MM 62.5/125 SIMPLEX 0.9mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: SC
② Ferrule End-face: PC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um),

OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

Fiber Optic Pigtail SC PC Mulitmode MM 62.5 / 125 um Simplex 0.9mm 1.5 Meter 0
