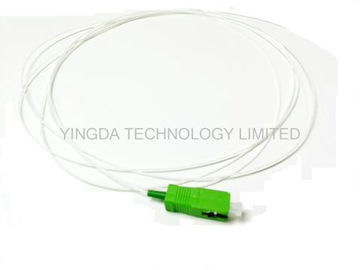

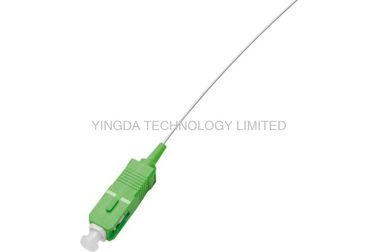

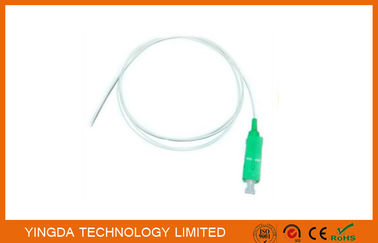

SC APC Fiber Connector OS1 OS2 9/125um 1.5 Mtrs White LSZH Simplex Optical Cable

Adedi:	500 pcs
fiyat:	0.16USD-19.9USD
Standart paketleme:	1 pc/ bag, 1500pcs / carton box
Delivery period:	7days after payment
Ödeme yöntemi:	Western Union, T/T
Tedarik Kapasitesi:	200,000 pcs per month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO SGS ROHS

Model Number

FPC-SCA-OS1-09-01-W

connector:

SC APC

fiber count:

simplex

insertion loss:

< 0.2 dB

fiber type:

9/125 um G652D

package:

plastic bag

cable diameter:

0.9mm,2.0MM,1.6MM,1.8MM,3.0MM

jacket:

LSZH, pvc

connector color:

white, yellow

temperature:

-40~+85°C

customer logo:

wavelength:

1310nm, 1550nm

Ürün Adı:

fiber optik pigtail, fiber optik pigtail, fo pigtall, fiber optik pigtail

Müşteri Logosu::

- Evet.

Vurgulamak:

su geçirmez pigtail

ribbon pigtail

Ürün Tanımı

SC APC Fiber Connector OS1 OS2 9/125um 1.5 Mtrs White LSZH Simplex Optical Cable

SC/PC is short for square card type, SC connector can plug directly,easy to use, but also easy to drop out.

SC APC Fiber Optic Pigtail is a component installed in a fiber optic transmission system that reduce the power

in the optical signal. It is often used to limit the optical power received by the photo-detector to within the limits

of the optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.

It is used in the fiber transmission system .

Features

Low Insertion Loss
High Return Loss
Good Repeat ability
Good Exchange ability
High Temperature Stability
Comply with YD/T 1272.4-2007 specification
8 Degree Angled physical contact polishing (APC)

Application

CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX networks

Specification

Item	Single mode (nomomodo)	Multimode (Multimodo)
Wavelength	1310&1550nm	850&1300nm
Fiber type	9/125um	62.5/125um,50/125um,50/125um OM3,50/125um OM4
Connector type	SC ST FC LC MU MTRJ E2000 DIN D4 ESCON
Insertion loss on average	≤0.3dB	≤0.3dB
Max. insertion loss	≤0.5dB	≤0.5dB
Return loss	UPC≥55dB;APC≥65dB	≥20dB
Operating temperature	-40~+75℃
Storage temperature	-40~+85℃

Ordering Information

LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: LC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

SC APC Fiber Connector OS1 OS2 9/125um 1.5 Mtrs White LSZH Simplex Optical Cable 0
