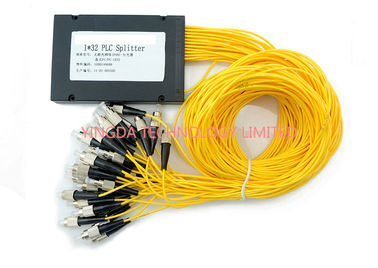

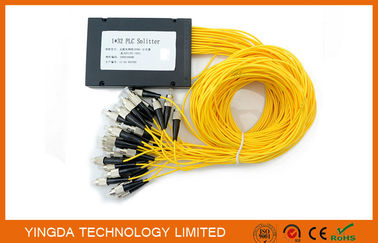

GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication

Adedi:	50 pcs
fiyat:	1.1USD-4.58USD
Standart paketleme:	1PC/BOX
Delivery period:	5-8days after payment
Tedarik Kapasitesi:	10,000 pcs per month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO SGS ROHS

Model Number

YD-PLC-MM132-FC-15-30

connector:

fiber type2:

Corning fiber SMF-28e

insertion loss:

16.9dB

Uniformity (Max.):

1.5 dB

wavelength:

1260-1650nm

PDL(Max.):

0.3 dB

plastic box module:

140*115*18 mm

Fiber length:

1.5 meter

cable diameter:

3.0 mm

Split ratio:

1x32 splitter Module

Vurgulamak:

fbt coupler

PLC splitter

Ürün Tanımı

GPON Low PDL 1*32 SC PLC Splitter, Fiber Optic PLC Splitter Box1:32 ABS Plastic

Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range.

These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.

Applications

* FTTH,FTTC,FTTB
* Passive Optical Networks(PON)
* CATV networks and data communications
* Fiber optic equipment and systems

Features

1. The loss is not sensitivity to optical wave length to be transmitted .It can meet the transmission

requirment of different wave.

2. Light splitting uniform.may distripute signal to customer uniformly.

3. The structure is compact .Small volume (1X32Splitter size :4X7X50mm).may install directly into

present various cross connecting cabinet ,need not special desigh and leave larger installation space .

4. The branched channels of single element may reach to more 32 channels.

5. The cost of multichannel is low .The more the branched channel qualtity ,the cost advantage will be

more obviously .

Specifications

Table 1 – 1×N PLC Splitter Rack

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

Table 2 – 2×N PLC Splitter Rack

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication 0
