Fiber Tool Kits Launch Cable Box

Adedi:	10pcs
fiyat:	Anlaşılabilir
Standart paketleme:	1pc/box
Delivery period:	7days after payment
Ödeme yöntemi:	Western Union, T/T
Tedarik Kapasitesi:	5,000 pcs per month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO SGS ROHS

Model Number

LB-ST-LC-S-2

connector:

SC FC LC ST

fiber count:

insertion loss:

< 0.2 dB

fiber type:

SM singlemode

package:

cable color:

yellow

cable diameter:

2.0mm

temperature:

-40~+80°C

Vurgulamak:

fiber optik araç kitleri

fiber polishing film

Ürün Tanımı

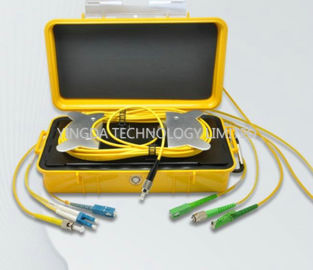

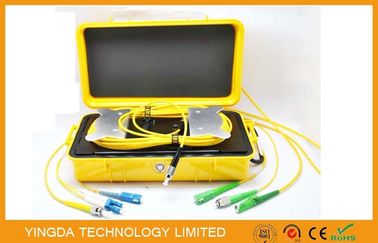

Fiber Tool Kits FC LC Fiber Optic OTDR Launch Cable Box, Dead Zone Eliminator Fiber Rings

The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s to help

minimize the effects of the OTDR’s launch pulse on measurement uncertainty. Available in many

different configurations: SC, FC, LC, ST and fiber lengths:500M, 1KM, 2KM... etc.

Features

Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity.
Water and dust prove allowing the unit to be taken into almost any environment.
Case can house up to 2,000 meters of fiber.
Auto Purge Valve for changes in altitude and temperature .

Specifications

LengthWidthHeight	9.37" x 5.56" x 2.62"
Material	SR Polypropylene
Color	Black/Yellow
Net Weight	0.75 kg (without fiber)
Operating temperature	Operating temperature
Typical Loss	< 1dB @ 1310nm for 1000 meters

KEEP NOTES:

Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000meters.

Ordering Information

LB-A-B-C-D

A = Input connector	B = Output connector	C = Fiber	D = Length(km)
FC	FC	S–Single mode fiber	0.5=0.5km
ST	ST	M6–Multi mode fiber (62.5/125)	1=1km
SC	SC	M5–Multi mode fiber (50/125)	2=2km
FCA – FC/APC	FCA – FC/APC
SCA – SC/APC	SCA – SC/APC
LC	LC
MU	MU

Fiber Tool Kits Launch Cable Box 0

Fiber Tool Kits Launch Cable Box 2
