Fiber Optic OM3 Patch Cord 10G

Name: Fiber Optic OM3 Patch Cord 10G
Brand: YINGDA TECHNOLOGY LIMITED
SKU: MCP-LSF-DX01
Price: 14.36 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	MCP-LSF-DX01
Adedi:	100 pcs
fiyat:	0.36USD-30USD
Teslim Zamanı:	7days after payment
Ödeme Şartları:	Western Union, T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO SGS ROHS

connector:

SC/UPC, SC/PC connector

fiber count:

duplex

insertion loss:

<0.2dB

Cable length:

customized

Cable diameter:

2.0 mm

fiber type:

multimode 50/125um OM3 10G

package:

1pc/ plastic bag

cable color:

aqua

Ürün Adı:

Fiber kablo, fiber optik ara kablolar, fiber optik ara kablolar, fiber optik atlama telleri, fiber o

Packaging Details:

1 pc/ box, 150pcs / carton box

Supply Ability:

60,000 pcs per month

Vurgulamak:

fiber optic patch cable

fiber optic jumper

Ürün Tanımı

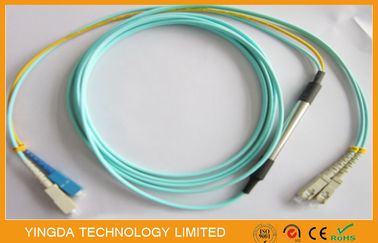

Mode Conditioning Fiber Optic Patch Cord SC - SC Duplex 50/125um OM3 10G

YINGDA Mode Conditioning Duplex Fiber Optic Patch Cable (50/125um or 62.5/125um) is use in

Gigabit Ethernet 1000BASE-LX applications. When deploying new high-speed 1000BASE-LX

routers and switches in existing multi-mode backbones, mode conditioning cable are a must.

Our Mode Conditioning cables allow 1000BASE-LX Ethernet to be run over a multi-mode

fiber optic backbone by offsetting signal loss. All Mode Conditioning Fiber Optic Cables

from the YINGDA are IEEE 802.3z compliant and completely eliminate Differential Mode

Delay (DMD).

Features

Comply with the IEEE 802.3 z (Gigabit Ethernet) standards
Shielding effect of differential mode delay
Low insertion loss (< 0.4 dB)
Suitable for 50 um and 62.5 um multimode optical fiber cable
Permanent displacement seal
Suitable for the current cable design

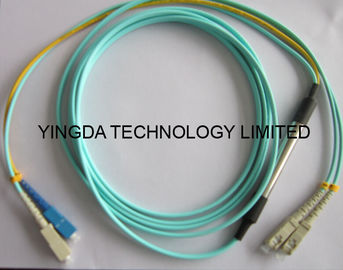

Fiber Optic OM3 Patch Cord 10G 0

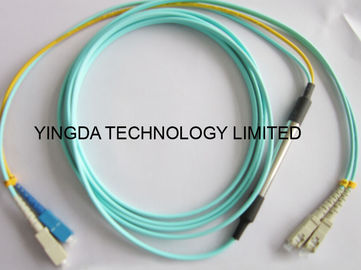

Fiber Optic OM3 Patch Cord 10G 1

Specification

Item	Multi-mode fiber(MM)
Fiber type	62.5/125um	50/125um
Average insertion loss/dB	0.4
Max insertion loss/dB	0.5
Interchangeability/dB	<0.2
Fiber offset value/um	17<offset<23	10<offset<16
Max Angle offset/°	1	1
Working temperature/℃	-20~+70
Tensile strength/kg	>10

Application

Remote transmission to short transmission of one billion - bit systems
The sensor
Optical fiber access network
Local area network (LAN)
Gigabit Ethernet network - 1000Base LX wavelength (1310nm)

Order information

Item	Equipment connector type	Plant connector type	Fiber type	Cable diameter	Cable length
MCP	FC(PC/UPC)	FC(PC/UPC)	50/125um	2.0mm	0.5meter
	SC(PC/UPC)	SC(PC/UPC)	62.5/125um	3.0mm	1.0meter
	LC(PC/UPC)	LC(PC/UPC)			...
	ST(PC/UPC)	ST(PC/UPC)
		MTRJ

We can also offer other types:

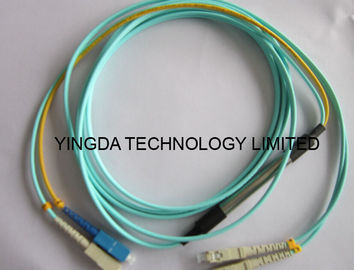

Fiber Optic OM3 Patch Cord 10G 2
