Fiber Optic Patch Cord E2000

Name: Fiber Optic Patch Cord E2000
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FPC-EAEA-SX-30-01
Price: 14.36 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	FPC-EAEA-SX-30-01
Adedi:	500 pcs
fiyat:	0.36USD-30USD
Teslim Zamanı:	7days after payment
Ödeme Şartları:	Western Union, T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO SGS ROHS

connector:

E2000/APC

fiber count:

duplex or simplex

insertion loss:

<0.3dB

Cable length:

1meter

Cable diameter:

2.0mm

fiber type:

singlemode SM 9/125um

package:

1pc / plastic bag

cable color:

yellow

return loss:

>60dB APC

connector house color:

green

Ürün Adı:

Fiber kablo, fiber optik ara kablolar, fiber optik ara kablolar, fiber optik atlama telleri, fiber o

Packaging Details:

1 pc/ box, 200pcs / carton box

Supply Ability:

60,000 pcs per month

Vurgulamak:

fiber optic patch cable

fiber optic jumper

Ürün Tanımı

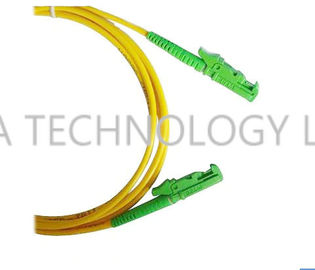

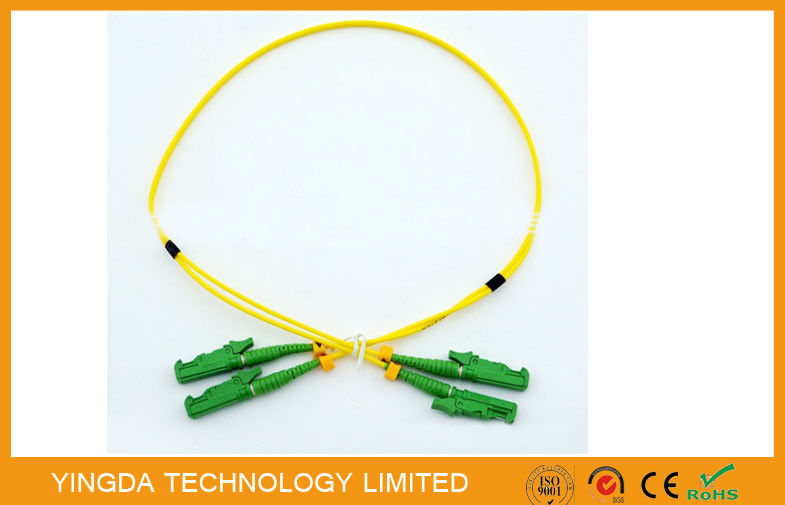

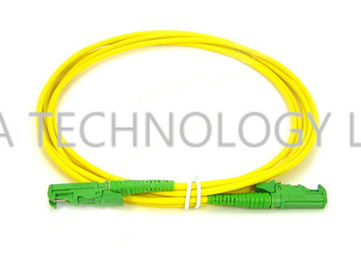

FTTH 100% Test Fiber Optic Patch Cord E2000 / APC - E2000 / APC Jumper

E2000 Fiber optic patch cord is a premium connector that offers superior performance.

The new metal protection shutters make the E2000 connectors system conforms to the

highest safety requirement in all current laser classes. The E2000 fiber optic patch cord

has several applicaiton like premise installations, data processing networks,

telecommunication networks and active device terminations.

The E2000 fiber optic patch cord has insertion loss<0.1dB. APC return loss >85dB

making this connector system ideal for high performance networks. We provide simplex

and duplex fiber optic patch cords in various boot(cable) size, also pigtails and fan-out

patch cords are available.

Feature

Low insertion loss
High return loss
Good exchangeability
Good durability
High temperature stability
Telcordia GR-326-CORE
ROSH compliant

Application

Fiber Optic Telecommunications
LAN (Local Area Network
FTTH (Fiber To The Home)
CATV&CCTV
High speed transmission systems
Fiber optic sensing

Specification

Parameter	Single mode	Multimode
Insertion loss	Typical ≤ 0.2dB, Max. ≤ 0.3dB	≤ 0.25dB
Return loss	≥ 50dB(PC) ; ≥ 65dB(APC)	≥ 30dB
Repeatability	≤0.1
Durability	≤0.2dB typical change,1000 matings
Interchangeability	≤0.2dB
Tensile strength operating temperature	>10kg -40 to 85C	-40~85C

Fiber Optic Patch Cord E2000 0
