1*32 Passive Fiber Optic PLC Splitter

Name: 1*32 Passive Fiber Optic PLC Splitter
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 1X32 splitter module
Price: 2.10 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	1X32 splitter module
Adedi:	50 pcs
fiyat:	1.1USD-4.58USD
Teslim Zamanı:	5-8days after payment

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO SGS ROHS

connector:

SC/UPC

fiber type:

single mode G657A1

insertion loss:

16.5dB

Uniformity (Max.):

1.5dB

wavelength:

1260 - 1650 nm

PDL(Max.):

0.3dB

Module size:

140×115×18mm

square tube size:

50×7×4mm

flat tube size:

80×20×6mm

Packaging Details:

1pc/ box,5pcs/carton box

Supply Ability:

10,000 pcs per month

Vurgulamak:

Fiber optik bölücü

PLC splitter

Ürün Tanımı

1*32 Passive Fiber Optic PLC Splitter Box FTTH PON Splitter Coupler

PLC (Planar lightwave circuit) splitter is made by lithography, corrosion, developing

production technology, use semiconductor process. Fiber array is on the surface of

optical chip, split function is integrated in the chip, that is to achieve 1:1 split on a chip;

then coupling respectively coupled input end and an output end multi channel fiber array

of the chip and packaged. It is widely used in FTTH network, CATV network,

GPON EPON network.

Black ABS box plc splitter Specification:

Type	1×2	1×4	1×8	1×16	1×32		1×64
Operating Wavelength (nm)	1260~1650
Fiber type	G657A or as customers’ request
Insertion Loss(dB) ( S/P)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5		21.0/20.5
Return Loss(dB) (S/P)	50/55	50/55	50/55	50/55	50/55		50/55
Polarization Dependent Loss (dB)	0.2	0.2	0.3	0.3	0.3		0.4
Directivity (dB)	55	55	55	55	55		55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5		0.5
Temperature Stability (-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5		0.5
Operating Temperature(°C)	-40~85
Storage Temperature(°C)	-40~85
Square Tube (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4
Box (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Flat Tube (mm)	60×7×4	60×7×4	60×7×4	60×12×4	80×20×6	N/A

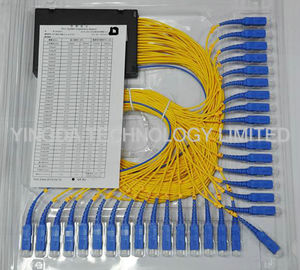

1*32 Passive Fiber Optic PLC Splitter 0

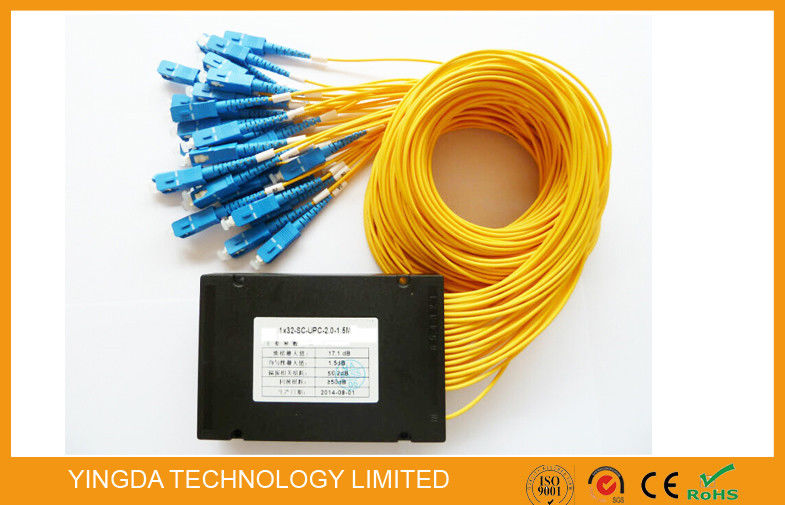

1*32 Passive Fiber Optic PLC Splitter 1
