19" Fiber Optic Patch Panel

Adedi:	50PCS
fiyat:	Anlaşılabilir
Standart paketleme:	1 pc / carton box
Delivery period:	3-5 days
Ödeme yöntemi:	T/T or western Union
Tedarik Kapasitesi:	50,000pcs per month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO, SGS

Model Number

ODF-UT24-SC/FC

capacity:

24 fibers

dimension:

485*300*75 mm

weight:

4.7 kgs

connector type:

FC/PC,SC/PC,SCAPC,FC/APC,LC/APC,ST/UPC

welding tray qty:

2pcs x12 fibers

splice tray capacity:

12 fibers

pigtail type:

sc fc lc st pigtail 0.9mm1.5meter

material:

cold rolled steel sheet

metal thickness:

1.0 mm

color:

white

Vurgulamak:

rack mount odf

optik dağıtım çerçeve

Ürün Tanımı

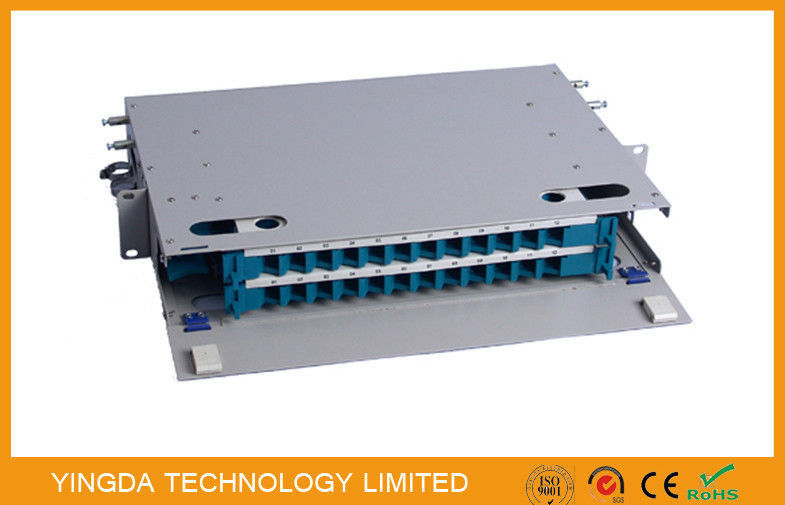

19" 24 Core Fiber Optic Patch Panel, 24 Port SC ODF Cable Distribution Box Cassette

24Cores ODF optical fiber distribution frame is standard 19" inch chassis, capacity 24Cores,

It is high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable

distribution in one set, each fused distribution module can be individually extracted, satisfy

the need of on and off the frame operation.

Large capacity optical distribution frame also are good operation, fused distribution module

can be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber

optic pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can

be directly welded.

Main Technical Parameters

19 inch rack standard use
Environment temperature: -5 ~+45°C
Relatively humidity:≤85% (+30°C)
Atmospheric pressure:70~166 KPa
Connector attenuation (Interchangeable and repeat): ≤0.5dB
Insertion loss: ≤ 0.3dB
Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC),
1min no breakdown, no arc
Isolation resistance between high voltage protection place and distribution frame: ≥
100MΩ/ 500V (DC)
By cascading 12 port splice integration module, configurable 12-144 core, 12 core
per tray
Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure
the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.

Structure features

Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
The downward and the side door use imported lock
The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
Configure reinforced core and cable fixed seat,complete accessories

Performance advantage

Good sealing performance, flexible configuration, quick installation
Set three functions: the optical fiber splice, cable storage, cable distribution in one set
Easy operation, reliable grounding, protect the safety
The full protection of the jumping fiber, ensure the bending radius ≥ 40mm

24 Cores UNIT BOX Standard package

Box body	1pc
Screws	4pcs
Sleeve (40/45/60mm)	24pcs
Buffer tube	1pc
Welding module tray 12core	2pcs

Details

Capacity	Spare parts	Size/mm	Net weight/kg
12 core	Splice tray, sleeve, buffer tube	48530050	3.9
24 core	Splice tray, sleeve, buffer tube	48530075	4.7
48 coe	Splice tray, sleeve, buffer tube	485300140	6.9
96 core	Splice tray, sleeve, buffer tube	485300252	11

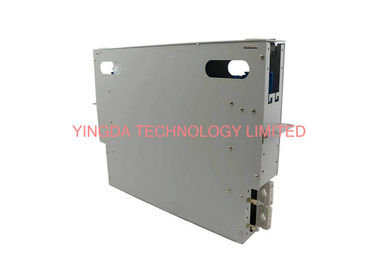

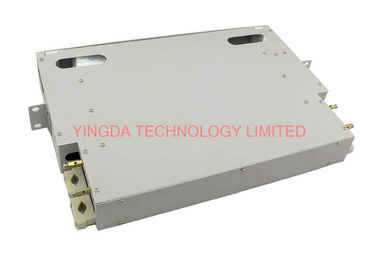

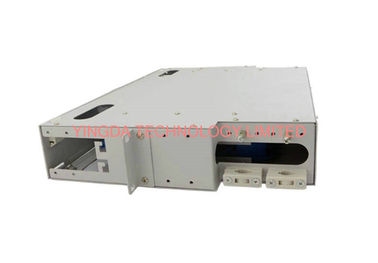

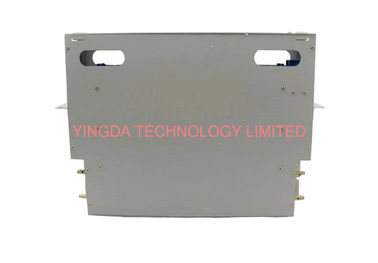

19" Fiber Optic Patch Panel 0 19" Fiber Optic Patch Panel 1 19" Fiber Optic Patch Panel 2
