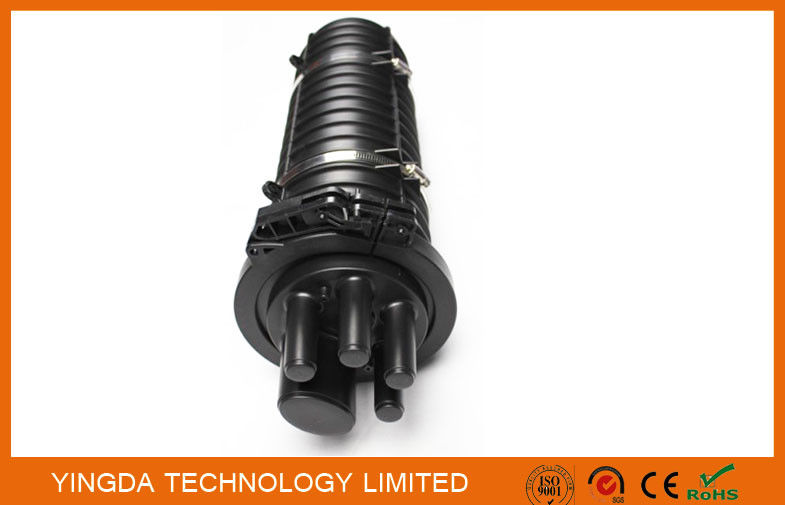

Dome Fiber Optic Splice Closure

Marka Adı: YINGDA
Model Numarası: JB102
Adedi: 100 PCS
fiyat: Anlaşılabilir
Teslim Zamanı: 5days after pay
Ödeme Şartları: T/T or western Union
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Sertifika:
ISO,SGS
shape:
Dome / vertical
max capacity:
96 fibers
cable port:
1 oval + 4 round port
cable diameter:
Φ10mm~Φ25 mm
material:
PP body + ABS tray
splice tray qty:
max. 4 pcs
closure dimension:
540x180 mm
weight:
3.5 kgs
carton qty:
6 pcs
carton size:
60*49.5*61mm
sealing method:
heat srhinkable tube
waterproof class:
IP68
Packaging Details:
1pc / box, 6 pcs/ carton box
Supply Ability:
50,000pcs per month
Vurgulamak:

fiber optic joint closure

,

outdoor splice box

Ürün Tanımı

48 Fibers Dome Fiber Optic Splice Closure,Pole Mount Jounction Box Closure

Equal to TYCO FOSC 400B4





Features:

  • May be used for cut, uncut and taut sheath applications.
  • May be used for all fiber optic cable.
  • Sheath retention & central strength member termination system included.
  • Ribbed closure construction-lightweight plastic offers strength and resistance
  • to chemical and U.V attack
  • Installation and reentry with a minimum of tools
  • All hardware are captivated



Application

  • Underground, Aerial, Vault, Pole Mounting and Wall Mounting



Specification



Model No

Max capacity

(single fusion)

Splice tray

Size

(Hx D)

Cable ports

Max cable

diameter

YDSC-JB102A

96 fiber

(4x24)

Tray JB102A

Capacity:24 fiber

540x180mm

1 oval port +

4round ports

1 oval ports for

 1 loop(uncut) cable

 with max ¢25mm.;

4 round ports,each

port for 1 cable with

max ¢19mm

YDSC-JB102B

Tray JB102B

Capacity:24 fiber


Standard accessories



Dome,Base,clamp,O-ring,metal storage basket,Splice Tray,,Heat shrink protective sleeve,

buffer tube,Cable ties,Grounding wire,Labeling paper,Installation Manual,



1 set of Oval port closing kits:



Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper

(2.5 x30mm)+ branching clip etc



4 sets of Round port closing kits:



Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)etc



Optional accessories



Hanging hook,Wall mounting(Duct mounting) kits,Pole Mounting kit,Grounding device,Air valve



Order information:



YDSC-JB102X-XX-XX-X

YDSC-JB102(A,B)-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)

-accessories(S=standard;O=optional,on customer request)



Dome Fiber Optic Splice Closure 0
