12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xmaterial | PC+ABS | Capacity | 12 fibers |
---|---|---|---|
adapter qty | 8piece SC | split ratio | 1x2,1x4,1x8 blockless splitter |
color | gray | size | 250*190*39mm |
connector insertion loss | <0.2dB | OME or sample | ok |
cable port | 2inlet,12outlet,express inputs | cable diameter | 16mmfor inputs, 3mm for outputs |
Vurgulamak | Optik dağıtım kutusu,Splitter dağıtım kutusu |

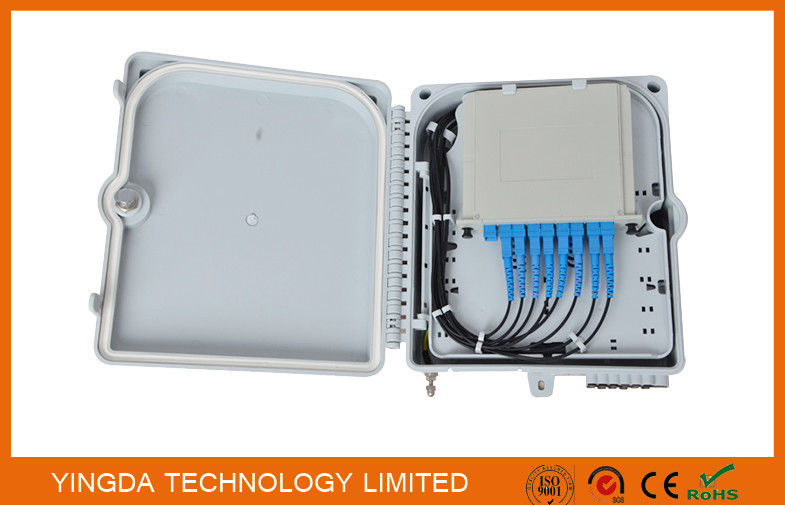

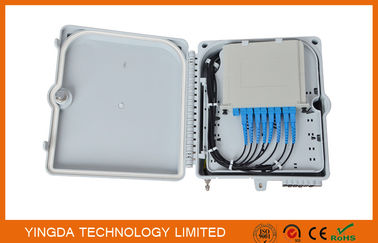

12Cores Fiber Distribution Box, Optical Splitter Module Junction Box Outdoor Pole Mounting Gray ABS for FTTH IP65
This ftth box terminates up to 2 fiber optic cables, offers space for splitters and up to 12 fusions, allocates 8 pcs of SC adapters with 1x8 PLC splitter module and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
- ABS/PC material used ensures the body strong but light weight.
- Total enclosed before shipment, and ready for wall mount, installation kits included.
- Adapter slots design, not need special screws or tools
- LGX module max. can hold 1x2, 1x4, 1x8 blockless PLC splitter
- Space saving:Double-layer design for easier installation and maintenance: Lower layer for splitters and over length fiber storage; Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Accommodates both cable glands or un-cut ports( tie-wraps)
- There is clip design to close the box, also lock provided for extra security
- Outdoor protection Level: IP65.
Application
- CATV Networks
- FTTH access network.
- Local Area Networks
- Telecommunication Networks
- Data Communications Networks
Specifications
Model | FDB-0212C |
Dimension (W*H* D) | 235*200* 60mm |
Splitter | 1x2,1x4,1x8 MICRO Splitter |
Material | Pc+Abs |
Color | White/gray/black |
Adapter | Max. 8pcs |
Fusion | Max. 12cores |
Cable diameter | 16mm or 2*3.0mm drop cable |
Operation conditions | Temperatures:-40℃ -- 60℃ Humidity:93% at 40℃ Air Pressure:62kPa – 101kPa |
Standard accessory
- Terminal box X1 unit
- Keys for lock X2 keys
- Wall mount installation accessories X1 set
