2KM MM 62.5 / 125 ST LC Fiber Tool Kits / Fiber Optic OTDR Launch Cable Box

Name: 2KM MM 62.5 / 125 ST LC Fiber Tool Kits / Fiber Optic OTDR Launch Cable Box
Brand: YINGDA TECHNOLOGY LIMITED
SKU: LB-ST-LC-S-2
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	LB-ST-LC-S-2
Adedi:	10pcs
fiyat:	Anlaşılabilir
Teslim Zamanı:	7days after payment
Ödeme Şartları:	Western Union, T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO SGS ROHS

connector:

SC FC LC ST

fiber count:

insertion loss:

< 0.2 dB

fiber type:

SM singlemode

package:

box

cable color:

yellow

cable diameter:

2.0mm

temperature:

-40~+80°C

Packaging Details:

1pc/box

Supply Ability:

5,000 pcs per month

Vurgulamak:

fiber optik araç kitleri

fiber polishing film

Ürün Tanımı

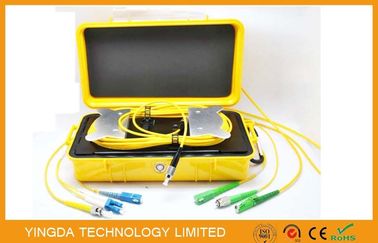

2KM MM 62.5/125 ST LC Fiber Optic OTDR Launch Cable Box Fiber Tool Kits

OTDR Dead Zone Eliminator Fiber Rings

The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s to help

minimize the effects of the OTDR’s launch pulse on measurement uncertainty. Available in many

different configurations: SC, FC, LC, ST and fiber lengths:500M, 1KM, 2KM... etc.

Features

Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity.
Water and dust prove allowing the unit to be taken into almost any environment.
Case can house up to 2,000 meters of fiber.
Auto Purge Valve for changes in altitude and temperature .

Specifications

LengthWidthHeight	9.37" x 5.56" x 2.62"
Material	SR Polypropylene
Color	Black/Yellow
Net Weight	0.75 kg (without fiber)
Operating temperature	Operating temperature
Typical Loss	< 1dB @ 1310nm for 1000 meters

KEEP NOTES:

Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000meters.

Ordering Information

LB-A-B-C-D

A = Input connector	B = Output connector	C = Fiber	D = Length(km)
FC	FC	S–Single mode fiber	0.5=0.5km
ST	ST	M6–Multi mode fiber (62.5/125)	1=1km
SC	SC	M5–Multi mode fiber (50/125)	2=2km
FCA – FC/APC	FCA – FC/APC
SCA – SC/APC	SCA – SC/APC
LC	LC
MU	MU

2KM MM 62.5 / 125 ST LC Fiber Tool Kits / Fiber Optic OTDR Launch Cable Box 0

2KM MM 62.5 / 125 ST LC Fiber Tool Kits / Fiber Optic OTDR Launch Cable Box 2
