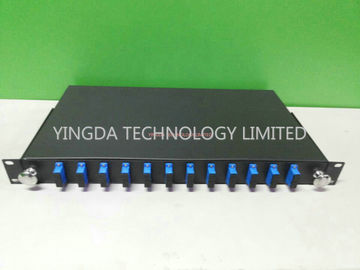

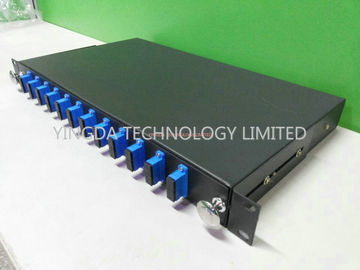

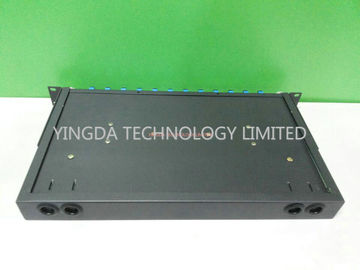

IP58 1U 19” Sliding Out wall mount Fiber Optic Patch Panel Indoor / Cable Tray

Name: IP58 1U 19” Sliding Out wall mount Fiber Optic Patch Panel Indoor / Cable Tray
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GPSM-2SC12
Price: 52.00 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	GPSM-2SC12
Adedi:	100 pcs
fiyat:	Anlaşılabilir
Teslim Zamanı:	5-8days after payment

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO SGS ROHS

material:

cold rolled steel

color:

black

capacity:

24 fibers

adapter:

SC duplex 12pcs

cable ports:

4 pcs

application:

FTTH FTTX FTTB ODN LAN WAN network

dimension:

430*300*1U or 430*250*1U

thickness:

1.0mm

Packaging Details:

1pc / box, 5 pcs / carton box

Supply Ability:

500,000 pcs per month

Vurgulamak:

rack mount odf

optik dağıtım çerçeve

Ürün Tanımı

1U 19” Sliding Out Patch Panel, 12 Port Fiber Optic Patch Panel SC Single Mode Duplex

GPSM series can be applied in branch connection of optical cable termination;

Made of spray the surface of cold rolled sheet
19inch standard structure
sliding design
rack mount
Suitable for SC FC LC ST adapters

Features

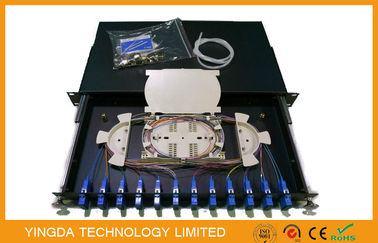

protection cable and wiring pigtail connection
make cable components and the box body insulate,easy to lead ground.
to provide cable terminal place and the remaining fiber storage space, convenient
installation and operation
With strong impact strength box body, convenient in different places to install
wall mount,rack mount or, directly placed in the groove
not suitable used in the open air (outdoor), if you want to use, please use the
corresponding protection measures
single fiber splice tray capacity: 24 core

Technical characteristics:

service life: 20 years
Insulation resistance: ≥ 2×104MΩ (test voltage: 500VDC)
withstand voltage strength: 1min no breakdown, no arcing phenomena under 15KV DC
Fire-retardant class: UL94 VO 70Kpa-106Kpa

Working environment:

Environmental temperature: -40 -+80°C
Relative humidity: ≤85％ (+30°C)
Atmospheric pressure: protection level (EN60529): IP54, IP58.

Specification

Type	Dimension (mm)	Max capacity (core)	Carton size (mm)	Qty/ carton (pc)	G.w (kg)
GPSM-1U-SC12	4303001U	12	485420350	5	29
GPSM-1U-FC24		24	485420350	5	29
GPSM-1U-2SC24		48	485420350	5	29
GPSM-2U-FC48	4303002U	48	500355550	4	26.5
GPSM-4U	1303004U	192	500350540	1	18.9

IP58 1U 19” Sliding Out wall mount Fiber Optic Patch Panel Indoor / Cable Tray 0
