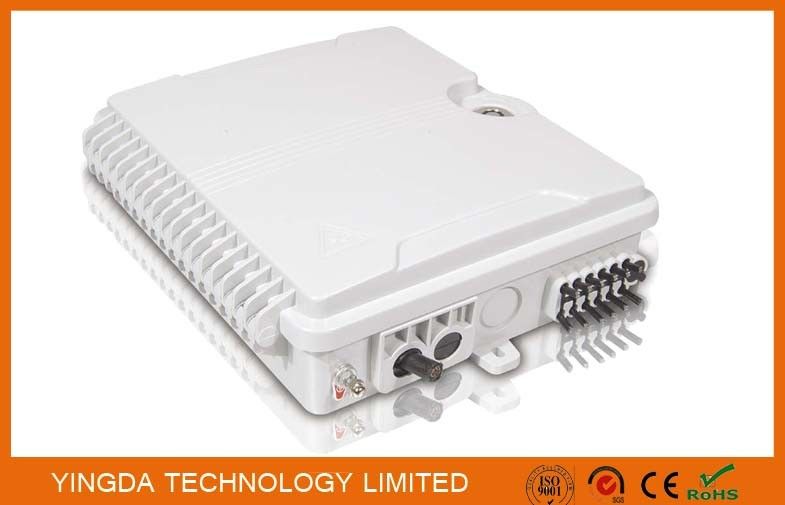

White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof

  • White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof
  • White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof
  • White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof
  • White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof
Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO
Model numarası FDB0212C
Min sipariş miktarı 200pcs, first order accept small order
Fiyat negotiable
Ambalaj bilgileri 1pc/box, 20pcs/carton box
Teslim süresi 5-8working days
Ödeme koşulları T/T, Western Union, MoneyGram, L/C
Yetenek temini 50k per month

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
material PC+ABS Capacity 12 fibers
adapter qty 12pcs SC/UPC couplers split ratio 1x2,1x4,1x8 micro splitter optional
color white size 225*200*65mm
connector insertion loss <0.2dB OME or sample ok
cable port 2in 16out; input; un-cut cable cable diameter 16mm
Vurgulamak

Fiber Optik Kapanması

,

Optik dağıtım kutusu
Mesaj bırakın
Ürün Açıklaması

Plastic Telecom 12 Ports Fiber Optic Termination Box, Pole Mount Optical Splitter Distribution Box With SC Couplers FTTH Patchcord



MODEL: FDB0212C



This fiber optical termination box is a termination point for the feeder cable with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features:

1. Water-proof d,IP65 Protection level

2. Integrated with splice cassette and cable management system

3. Manage fibers in a reasonable fiber radius condition

4. Easy to maintain and extend the capacity

5. Fiber bend radius >40mm

6. Suitable for the fusion splice or mechanical splice

7. 12 ports cable entrance for FTTH drop cable

8. Max hold 12pcs SC adapters

9. Wall mount or pole mount



Configuration:

Model Size Max capacity Color Material
FDB0212C 225*200*65mm 12pc SC White PC+ABS



Package information

Model Carton quantity G.w./ctn N.w./ctn Carton size
FDB0212C 20pcs 22.4kgs 22kgs 51*50*51cm



More pictures

White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 0White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 1

  • Tdistribution box cable ports:2in 16out
  • with waterproof key lock
  • high strength engineer plastic

White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 2White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 3

  • with cable routing diagram inside for guiding
  • SC adapter panel must install 12pcs SC simplex adaptor adapter coupler
  • dual layer splice tray with hinge, upper for distribution and storage, down layer for fusion and protection

White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 4White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 5

  • with underground wire,and drop cable fixtures with stainless steel matreial
  • can print customer LOGO / OEM



Optional accesories can be pre-terminated inside of the box:

White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 6White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 7White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 8White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof 9



Specification:

Environmental requirement Parameters value
Working temperature -40℃~+85℃
Relative humidity ≤85%(+30℃)
Atmospheric pressure 70KPa~106Kpa
Main technical
Insertion loss ≤0.2dB
return loss UPC≥50dB; APC≥60dB
Life of insertion and extraction >1000 times
Thunder-proof technical The grounding device is isolated with the cabinet, isolation resistance is less than 20000MΩ/500V(DC);IR≥20000MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min,no puncture,no flashover;U≥3000V



How to install

1.Wall-mounted installation

Drill 3 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

2.Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole



Accessories:

1. Users' Manual*1

2. Key*1

3. Accessories Bag * 1

4. Easy pole ring*2 (Option)
