1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xmaterial | ABS + PC | color | white |
---|---|---|---|
capacity | 2 Core | adapter | 1pcs SC simplex, 1 pcs LC duplex coupler |
output port | adapter or indoor cable, ftth drop cable | size | 90*120*25 mm |
cable diameter | Φ7~Φ14mm | application | wall mount |
cable port | 1in 1 out | feature | flame retardant |
Vurgulamak | Fiber optik Terminal kutusu,Fiber optik dağıtım kutusu |

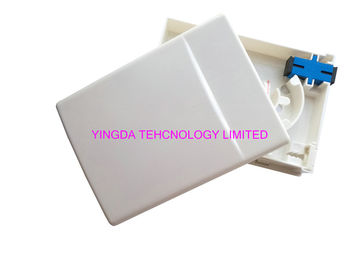

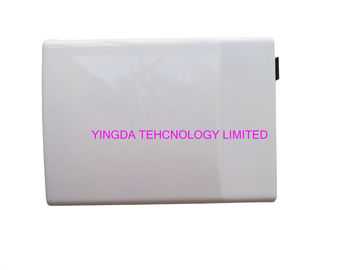

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate
Model:FTB86D
Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
Features
- Small size, light weight, pleasing in appearance
- Can be installed on the wall with mechanical protective function
- May adapt variety of optical connection styles.
- Optical fiber can be managed effectively
- Set strengthen device and fiber optic cable mounting seat
- SC 1cores, LC 2 cores.
- Max capacity for SC 1 cores or LC 2 cores
- Suitable for indoor wall mount
Specification
Item | FTB-86D |
Dimension(mm) | H120×W90×D25 |
Weight(Kg) | 0.075 |
Cable diameter (mm) | Φ7~Φ14 |
Cable port | 2 holes |
Max capacity of splice tray | 2-4(single fiber) |
Max No of splice tray | 1 |
Max capacity of cable | 4(single fiber) |
Kit content
Item | Type | Quantity |
Fiber protective sleeves | 60mm | According to cores |
Cable tie | 60mm | 10×splice tray |

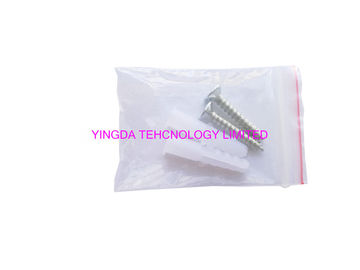

Nails of installation | Nail | 2pcs |
Packing information
Model | Dimension (mm) | Outer carton dimension (mm) | Outer carton weight(kg) | No of units per carton(pcs) |
FTB-86D | 120×90×25 | 530x390x535 | 23.0 | 260 |
Installation tool
1 Knife
2 Screwdriver
3 Plier
Component
terminal box can use 1x SC adapter, all box include wall mounting accessories.
all the box is self-clip design, slide in

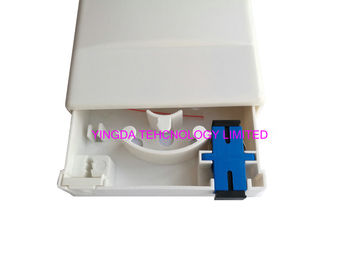

there is 1 cable port in front and back, and 1 pc SC adapters.
Method of installation

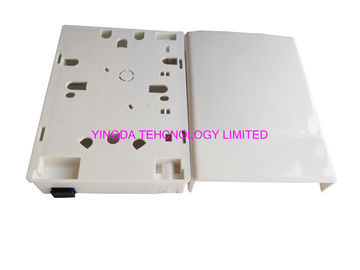

1 Measure distance of two installation holes, then drill holes on the wall, then fix the base of the box on the wall by expansion nails.
2 Peel cable, take out required fibers, then fix the input cable on the body of the box..
3 Splice drop cable and pigtail as below splice slot.

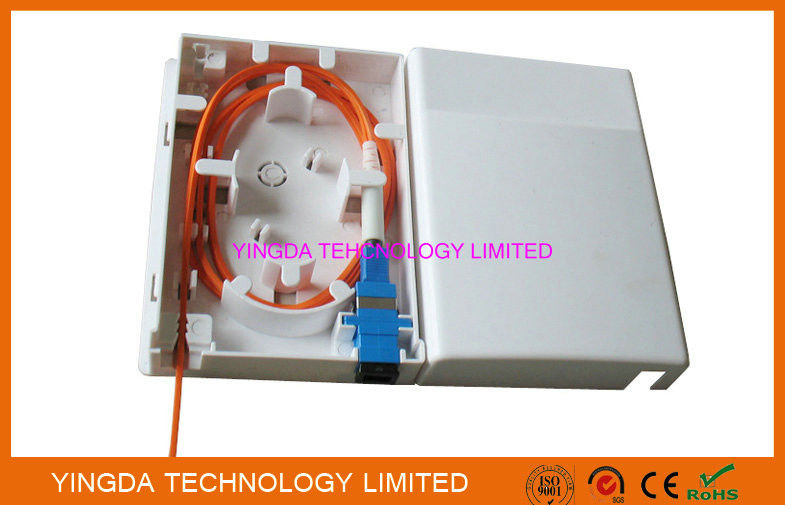

4 Store connected fibers on the below tray, then fixed by tie, then lead out on the output port by 1 Simplex SC or 1 Duplex LC adaptors. The lower part of the adaptor slot can be remove by plier.
5 Insert the body on the base’s hook, close cover, the installation is over.
