24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO
Model numarası FDB0224C
Min sipariş miktarı 500 PCS
Fiyat Negotiable
Ambalaj bilgileri 1 pc per box, 10 pcs per carton shipping box
Teslim süresi 5-8 working days
Ödeme koşulları T/T,Western Union, MoneyGram
Yetenek temini 20000pcs/month

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Capacity 24fibers Cable ports 2pcs
Dimension 320*240*100mm cable diameter 2*3.0mm drop cable or indoor cable
Material PC+ABS Color white/gray
Application indoor and outdoor outports 24pcs drop cable
special un-cut cable go through the box adapter capacity 24pcs SC
Vurgulamak

Fiber Optik Kapanması

,

Optik dağıtım kutusu

Mesaj bırakın
Ürün Açıklaması

24 Cores Fiber Optic Termination Box for Uncut Cable, Mid Span Access FTTH Fibre Splice Box 24 Ports PC+ABS White





Model: FDB0224C



Fiber Termination Box provides a high density wall mounted solution for next generation networks,

which aims to provide and manage maximum numbers of fiber termination in a limited space.

It is normally installed in the way of wall mounting or pole mounting.



Features:



1. Water-proof design with IP65 Protection level

2. Integrated with splice cassette and cable management system

3. Manage fibers in a reasonable fiber radius condition

4. Easy to maintain and extend the capacity

5. Fiber bend radius control more than 40mm

6. Suitable for the fusion splice or mechanical splice

7. 24 ports cable entrance for FTTH drop cable



Specification

24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box 0



Model

Size(A*B*C) Adapter FTTH drop cable Max Capacity Installation Size(A*B)
FDB0224C 320*240*100mm SCx24;LCx24 Duplex 24ports 24fibers 190*298mm



Packaging information



Model CTN qty N.w/ctn G.w./ctn Ctn size
FDB0224C 10pcs 15.1kgs 17.5kgs 60*36*63cm



24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box 1



More pictures



24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box 2

                        overview fig.1

the box is total enclosure with keys,flip design,white color or gray color.

24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box 3

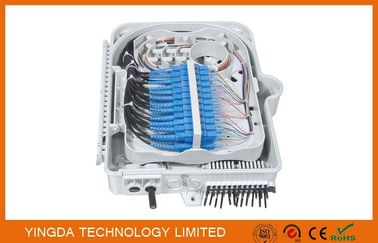

                     internal view fig. 2

the box with tray insdie, the upper layer is for distribution, and the downward is for fusion splice.

max. capacity: 24fibers fusion with protetive sleeve. it has enough redardant fiber storage space.





24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box 4

    distribution layer view  fig. 3

the upper layer can use LGX modular  for PLC splitter 1x1:16, or 2x1:8 plc splitter



24 Cores Fiber Optic Distribution Box For Uncut Cable , Mid Span Access FTTH Fibre Splice Box 5

                    intenral view fig. 4

the upper layer can use adapter panel to hold max. 24pcs SC adpaters in 2lines

the box cable ports: 2 inlets, 24 outlets. The inlets can be cable gland IP65, or use mid-span access, then it can use for uncut cable, which ease cable installation and save time.



Termination Box Technical Parameters



Work temperature -40~+85°C
Relative humidity ≤85% (+30°C)
Atmospheric pressure 70kPa-106kPa
Insertion loss ≤0.2dB
Upc return loss ≥50dB
APC return loss ≥60dB
Insert and pull out life ≥1000times
Insulation The grounding device is insulated with the termination box, IR≥1000m Ω/500V(direct current)
Withstand voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U≥3000V (direct current)
