48 Çekirdek Füzyon Splice Fiber Optik Dağıtım Kutusu 3 Tampon Tüpü İçin 3 Out
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xMalzeme | Pc veya pp | Renk | siyah |
---|---|---|---|
mühür | Mekanik sızdırmazlık | Kablo Bağlantı Noktaları | Tampon tüp için 3in 3out, damla kablo için 8in 8out |
Kablo çapı | 6 bağlantı noktası: 8-16mm, 16 bağlantı noktası: 2x3mm | PLC splitter | 1x16, 1x8, 1x4, 1x2 mikro optik ayırıcı |
Bağdaştırıcı | SC / UPC maks. 18 parça | Boyut | 310x207x97mm |
müşteri modeli | Tamam | Örnek | Tamam |
Vurgulamak | Fiber optik bağlantı kutusu,fiber optik kablo bağlantı kutusu |
1x16 Plc Splitter Distribution Box, FTTH Cable Fiber Optic Enclosures 48 Cores Fusion Splice
Model: GJS-2017
FTTH drop cable splitter closure is mainly used for splitting and wiring ,not only have the butt-joint
and branching function, but also have the function of optical cable splitting and wiring, suitable for
the installation of main optical cables and drop cables with different diameters.
Features:
- The closure adopts horizontal mechanical sealing and advanced internal structure design.
- It can be installed one 1:8 Blockless PLC splitter. 2*3mm drop cable both ends in and out.
- The closure is spacious enough for winding and storing fibers.
- The patented sealing structure keep good sealing performance after re-entry and re-using.
- Easy open and close of closure with very little tool. 24cores Fusing Splice available(Max.48cores)
Applications:
- Suitable for bunchy fibers
- Aerial, wall-mounting
- It’s especially applicable to FTTH optical fiber distribution
GJS-2017 Fiber Optic Splice Closures Specification
Model | Splice Tray Capacity |
Splitter Tray (Blockless Type PLC Splitter) |
Number of adapters | Max. Capacity | Suitable Cable Dia.Allowed |
GJS-2017 (Bunchy) |
24-48F | 2 x1:8, 1 x 1:16 | 18 pcs | 24-48F |
4-φ8~φ16mm 2-φ8~φ13mm 16-2*3mm |
Accessory List
English user manual | 1pc |
sand paper | 1pc |
Special wrench | 1pc |
Wall mounting kits | 1set |
Buffer tube | 1pc |
Labeling marker | 1set |
Earthing wire | 1pc |
Insulation tape | 1roll |
Heat shrinkable protective sleeve | 1bag |
Desiccant | 2bags |
Sealing tape | 1roll |
Package: 1 piece / box, with all wall mounting accessories
The cable is clip cover design, have 6 pieces cable inports, optical fiber cable diameter is:
4ports:8-16mm;
2ports: 8-13mm;
16ports:2x3mm;
- inline fiber optic cable splicing splitter box with 1x16 PLC splitte SC/UPC connectors pre-termianted at factory.
- The tray fixing on the box is clip design, no need to use speical tool to take off the tray, only by hand.
- The upwards is the adapter panel for distribution, maximum capacity is 18 pieces SC fibre adaptors. the backwards is for cable splitting with micro optical plc splitter 1x 1:16 or 2 pcs 1:8 and reduandant fibers storage.
- There is speical place designed to fix the PLC splitter tube, and clip it at the back of the splice tray.
- when installation, please take carefully so as not to make the fiber broken.

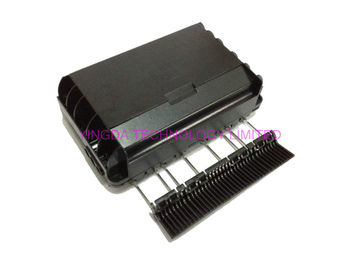

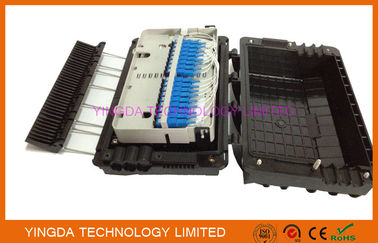

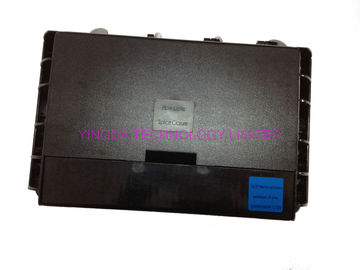

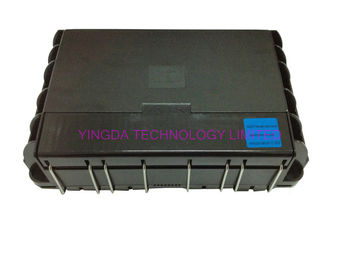

fiber optic splitter box front view fibre optic splitter box back view
the distribution box is made of high strength engineer plastic PC material,with stainless steel bolts 6 pieces and special clip shaft to close and open the box.
