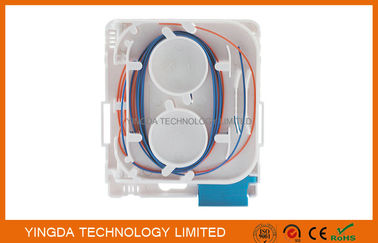

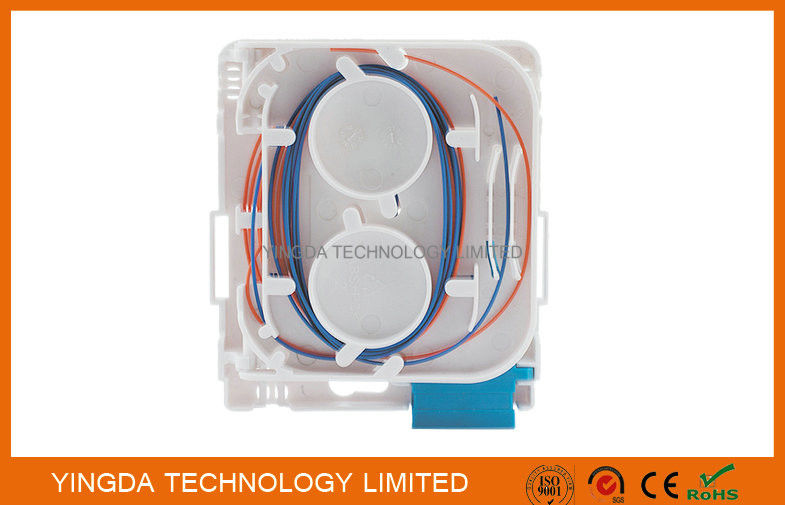

2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box

  • 2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box
  • 2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box
  • 2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box
  • 2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box
  • 2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box
Menşe yeri Çin
Marka adı yingda
Sertifika ISO,SGS
Model numarası FTB86E
Min sipariş miktarı 100 PCS
Ambalaj bilgileri 92 pcs per carton box
Teslim süresi 5-8days
Ödeme koşulları Western Union, MoneyGram, T/T

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
max capacity 4 fibers outport adapter port or drop cable
material pc+abs color white
applicable FTTH drop cable, indoor cable, round cable size 116*86*23mm
adapter SC duplex structure clip, dustproof design
fiber mode single mode, multimode
Vurgulamak

Fiber optik Terminal kutusu

,

Fiber optik dağıtım kutusu
Mesaj bırakın
Ürün Açıklaması

2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box





FTTH Fiber Socket is specially designed for FTTH (Fiber to The Home) for indoor application.

It is with a transparent door for dust proof.



Features

  1. Simple operation
  2. Drop cable can come in from the left, the right or the bottom
  3. Flexible termination methods: splicing + pigtail, FTTH fast connector on site.
  4. Max. 4fibers LC, or 2fibers SC
  5. Adapter SC or LC without flange available
  6. Pigtails or adapter can be installed at the factory terminated
  7. Customer LOGO silk print
  8. cable management can be connected without cutting(with express port)
  9. all modules are free of welding.



Specifications



Model Size Max. Capacity Color Material Ctn qty Ctn size Ctn weight
FTB86E

H*W*D (mm)

116*85*22

SC: 1x Duplex

LC: 2 x Duplex or 1 Quad

 White ABS 92pcs 43*28.5*26cm 9.8kgs



Technical Performance



Application 3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter 125μm ( 652 & 657 )
Tight cladding diameter 250μm & 900μm
Mode of application Single mode & duplex mode
Tensile strength >50 N
End-use temperature -40~+85℃
Adaptor SC & LC
Insertion loss ≤0.2dB(1310nm & 1550nm)
Out ports 1



Applications:

  1. Wall mounting installation
  2. Suitable for 2*3mm FTTH Drop Cable
  3. FTTH network
  4. PON network



Wall-mounted installation



Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box

to match up the holes and use bolt to fasten.



2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box 02 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box 12 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box 2



More products of FTB86E show

2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box 32 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box 42 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box 52 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box 6



YINGDA Produce all kinds of FTTH terminal box, socket panel, wall outlet for Fiber to the home network,

capacity 1 fibers, 2 fibers, 4 fibers all available. If you have inquiry, pls don't forget to send inquiry or questions. Thanks.
