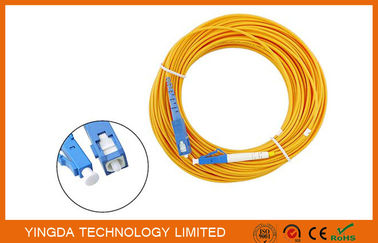

LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO SGS ROHS
Model numarası LCSC-SMSX-15-1.8mm
Min sipariş miktarı 500 pcs
Fiyat negotiable
Ambalaj bilgileri 1 pc / plastic bag
Teslim süresi 5-8days after payment
Yetenek temini 15,000 pcs / day

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
connector LC to SC fiber count Simplex
insertion loss < 0.2 dB return loss >55dB
Fiber length 15meter cable diameter 1.8 mm
cable color yellow connector color blue
Vurgulamak

fiber optic patch cable

,

multimode patch cord

Mesaj bırakın
Ürün Açıklaması

LC / SC Fiber Optic Patch Cord SM SX 15Meter, LSZH, SC / LC Optic Fiber Cable Assembly





Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic

patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there

are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic

patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic

cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket

color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.



LC is the short form of Lucent Connector, LC fiber patch cord connector is a push and latch structure,

with plastic housing and accurate 1.25mm ceramic ferrule. LC type is a popular kind of small form fiber

optic patch cord which reduce the space and it is widely used for densely installation.



SC fiber optic patch cord was invented by the Japanese company NTT. It is one of the most widely

used fiber optic patch cords. SC fiber optic patch cord features low cost , simplicity as well as good

durability, SC fiber optic patch cords is with a locking tab on the cable termination, it is a push and pull

type fiber optic connector.





Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth



Specification

Item

Standard,Master

Connector type

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,

FC/APC,LC/APC.MU/APC

Duplex MTRJ/Female, MTRJ/Male

Fiber Type



9/125 SMF-28 or equivalent (Singlemade) OS1

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G  (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord)

Φ3.0mm, Φ2.0mm, Φ1.8mm

Φ1.6mm PVC or LSZH

Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750


Return Loss (For Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

 ±0.1dB

Operating temperature

-400C to 850C


Geometry Requirement

(For Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1





Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor



Order information



1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,

2. End face: UPC PC APC

3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.

4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified

5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,

OM3 (50/125-150), OM4 (50/125-300) etc.

6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector),

     green (APC connector), aqua (OM3)

7. Boot color : grey,blue, green, white, red, black, green

8. Cable jacket: PVC, LSZH

9. Cable length: customized
