12 Port FC Fiber optic Patch Panel rack mount , 12 Fibers FC SM SX ODF Patch Panel

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO SGS ROHS
Model numarası GPSM-FC12
Min sipariş miktarı 100 pcs
Fiyat negotiable
Ambalaj bilgileri 1pc / box, 5 pcs / carton box
Teslim süresi 5-8days after payment
Yetenek temini 500,000 pcs per month

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
material cold rolled steel color black
capacity 12 fibers adapter FC square adapter
cable ports 4 pcs application FTTH FTTX FTTB ODN LAN WAN network
dimension 430*300*1U or 430*250*1U thickness 1.0mm
Vurgulamak

rack mount odf

,

optik dağıtım çerçeve

Mesaj bırakın
Ürün Açıklaması

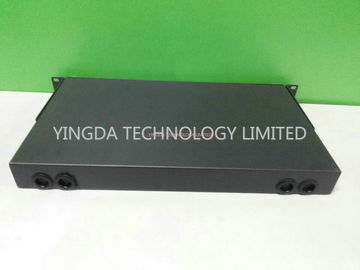

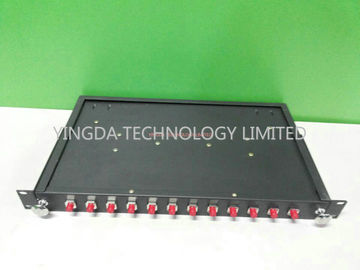

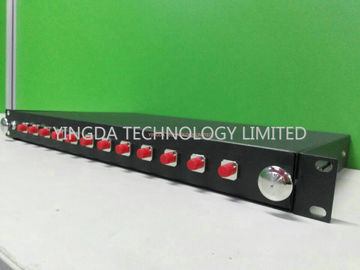

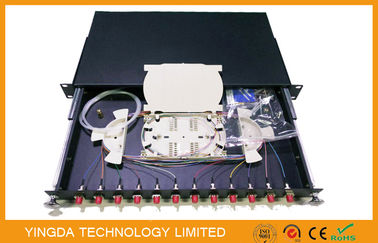

12 Port FC Fiber Optic Patch Panel, 12 Fibers FC SM SX ODF Patch Panel





Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission

communication network, which is suitable for indoor optical cable splice directly and branch connection,

 and protective the fiber.





Features

  • Applicable in the termination and 19'' standard structure,
  • Metal sliding design
  • rack mount in optical distribution frame ODF
  • Suitable for FC,SC,ST,LC,E2000 adapters
  • Cold rolled steel sheet, with electrostatic spraying
  • Box size: 430*250*1U available,for cost save.



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton

(pc)

G.w

(kg)

GPSM-1U-SC12

430*300*1U

12

485*420*350

5

29

GPSM-1U-FC24

24

485*420*350

5

29

GPSM-1U-2SC24

48

485*420*350

5

29

GPSM-2U-FC48

430*300*2U

48

500*355*550

4

26.5

GPSM-4U

130*300*4U

192

500*350*540

1

18.9



Environmental requirements:



Not suitable outdoor use, if need to use, should take protective measures.



Working temperature

 -25 to +40 °C

Storage temperature

-25 to +55 °C

Relative humidity

≤85% (30°C)

Atmospheric pressure

70 ~ 106kPa

Service life

20 years



Mechanical properties



Tensile strength:should withstand axial tensile strength not less than 500N between cable terminal

box and the cable, and not less than 5N between wiring pigtail and terminal box.



Compression test: cable terminal box each should be able to withstand the vertical static pressure

not less than 200N.



Twist test : cable terminal box should be able to withstand the torsion angle.





Electrical properties

  1. Fiber optic cable box metal component and cable metal strengthening core, cable metal
  2.  components and the ground insulation resistance
  3. insulation resistance:
  4. should be no less than 2*104M ohm, test voltage:500V (DC).
  5.  voltage strength:
  6. no breakdown, no arc phenomenon at 15Kv DC under 1min, no breakdown, no arc
  7. phenomenon.
