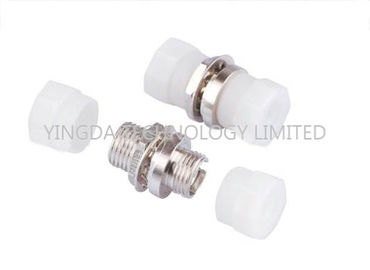

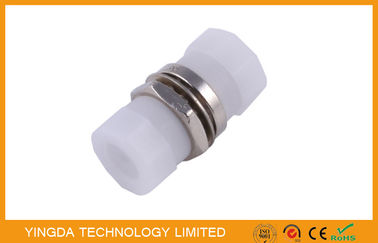

Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xFiber count | 1 fibers | connector material | metal + plastic |
---|---|---|---|
dustcap color | white | sleeve material | ceramic |
fiber type | single mode SM | polish mode | UPC / PC |
working temperature | -40 ~ +80 °C | wavelength | 1310/1550nm |
Vurgulamak | Fiber optik bağlantı,Fiber optik adaptörü |
Fiber Optic Coupler FC SM SX, Fiber Adapter FC /PC D Type Metal Simplex
Fiber Optic Adapter (also called fiber opptic coupler), is a kind of connector in optical fiber transmission,
whose both ends can be inserted the different optical fiber connector such as FC, SC, ST, LC,
MTRJ, MPO, E2000 to make them interchange, and widely used in optical distribution frame(ODF),
optical Fiber communication equipment, instruments, etc.It is superior performance, stable and
reliable. Some call fiber optic adapter as optical fiber connectors, in fact, its two different items.
FC type
The earliest connector was developed by NTT, Japan. The abbreviation of FC is ferrule connector,
which indicates that its external strengthening way is to use metal sleeve, fastening way as the turn
buckle. First, FC type connector, the use of ceramic the butt end of the pin. Such connector has
simple structure, convenient operation, easy, but the dust sensitive optical fiber end face, and prone
to Fresnel reflex, is difficult to improve properties return loss. Later, made improvement for this type
of connector, adopts the butt end of spherical pin (PC), and external structure has not changed, the
insertion loss and return loss performance has improved significantly.
Features
- Low insertion loss< 0.2 dB
- zinc alloy or copper material
- Good interchangeability
- Good repeatability
- 100% test in factory
- Blister box or plastic bag pack
Application
- optical fiber communication system
- cable TV network
- local area network (LAN), optical network domain
- optical fiber to the home (FTTP)
- video transmission
- test instruments
Specification
Item |
Value |
Wavelength |
1200-1600nm |
Polish method |
UPC,PC,APC |
IL |
≤0.2dB |
Max. IL |
≤0.3dB |
Repeatability |
≤0.1dB |
Interchangeability |
≤0.2dB |
Sleeve material |
Cermic or metal |
Working/Storage temperature |
-40~+85℃ |
Matings time |
>1000 |
Standard |
Bellcore TA-NWT-001221/001209 |
Order information
Endface |
Fiber mode |
Fiber core |
Sleeve |
PC |
Multi mode |
simplex |
Cermic |
UPC |
Single mode |
duplex |
Phosphor bronze |
FC Adapter Small D hole More Details:
