FC Fusion Quick Splice Connectors , Field Installable Connector Bare Fiber 250um
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xVurgulamak | mechanical splicer,FTTH connector |
---|

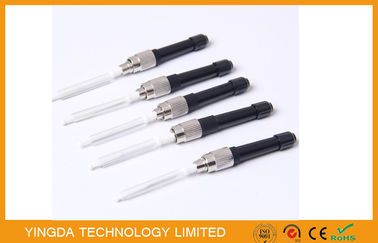

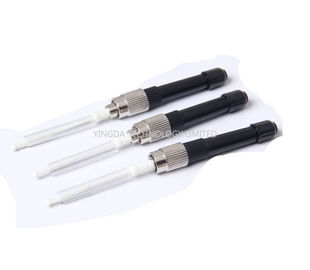

FTTH FC Fusion Splice On Connector, Field Installable Connector Pre-Polished 10pc/set
(Black Color Type)
SELL POINT:
1. 1000% test in house before delivery
2. 0.9,2.0,3.0mm suitable
3. 5pcs/set in bliseter box
4. each box with english user manual
Description

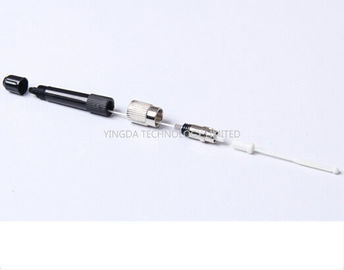

FC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point inside
the connector end, equivalently eliminate the pigtails when splicing.The advantage is no need
additional protection after splice, such as splice tray,splice closure,distribution box. In contract
to the design of mechanical splice connector, it save V-groove mechanical connector maintenance
and operation cost and durable, which overturns the concept that high cost of splice machine
and do not apply to FTTH construction.
Features
- Low operation cost, high efficiency
- Quickly achieve the on-site termination connection
- Easy operation or use
- Pressure welding parts adopt new unique structure design, installation without glue injectino, no grinding, no consumables
- High installation quality, high success rate and installation fast, etc
- Easy to carry
- Accurate mechanical dimensions
- All materials conforms to ROHS
Application
- FTTH optic fiber terminal connection
Specification
Item |
Parameter |
Cable |
3.1*2.0mm drop cable |
Fiber diameter |
125um(G657A2 bare fiber) |
Tight buffer diameter |
250um |
Fiber type |
Single mode OS1 9/125um |
Insertion loss |
≤0.3dB |
Return loss |
≤-50dB |
Bare fiber solid tightness |
>250g |
Working temperature |
-40℃-+80℃ |
Tensible strength |
60N(5kgs for 2mins) |
Drop test |
4 meters high cement floor direction at a time,in total 3times |
Order information:
1. fiber inside: 0.9mm, bare fiber 250um
2. application cable diameter: 0.9mm, 2.0mm, 3.0mm
