IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box

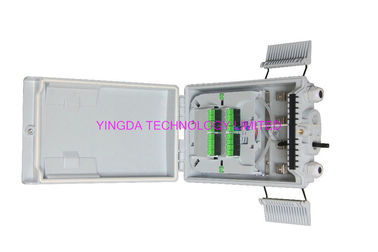

  • IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box

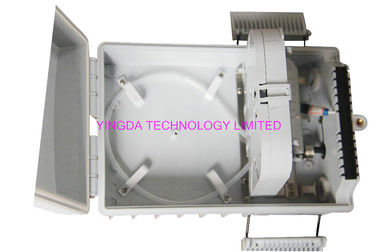

  • IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box

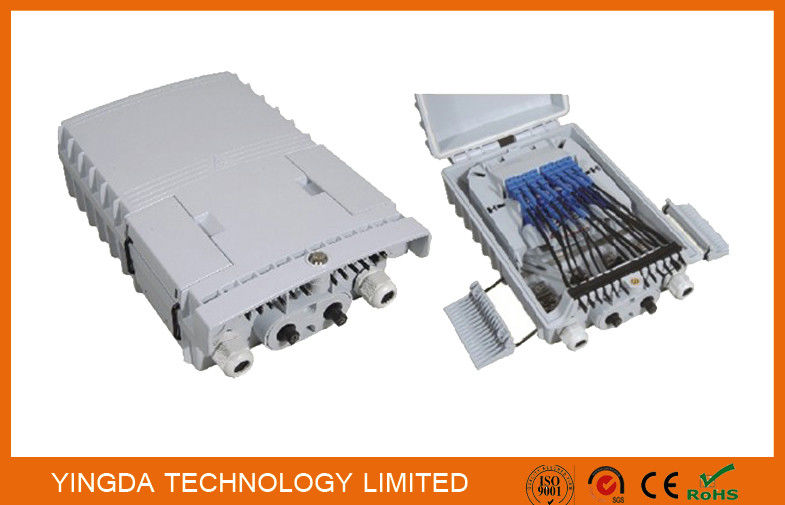

  • IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box

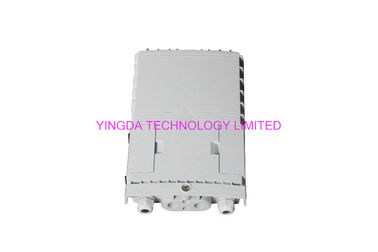

  • IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box

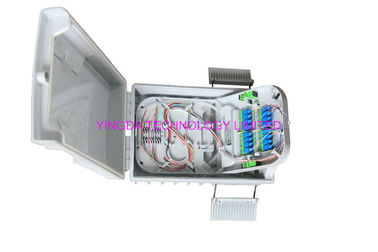

  • IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box
Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO
Model numarası FDB0216W
Min sipariş miktarı 200PCS
Fiyat Negotiable
Ambalaj bilgileri 1pc / box, 10pcs/ carton box
Ödeme koşulları T/T, MoneyGram, Western Union

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
color white or black max capacity 16fibers
max split 2x 1:8 plc splitter max splice 16fibers
adapter sc , fc coupler material PC+aBS
cable ports 4in,16out working temperature -40 +80℃
fiber type singlemode, multimode tensile strength >20N
application 3.0*2mm drop cable or indoor cable
Vurgulamak

Fiber Optik Kapanması

,

Optik dağıtım kutusu
Mesaj bırakın
Ürün Açıklaması

Ftth 16 Cores Fiber Distribution Box With Sc Apc Adapter, IP65 Fiber Optic Splitter Box





ODP FDB0216W type Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features



1.Total enclosed structure.

2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4.Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.

5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



Optical Distribution Box Structure



IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box 0

1 Lid 8 Loop ring 15 Grounding bracket
2 base 09 Flap fixed bracket 16 Waterproof blocker
3 Connecting screw 10 C type Flip plate 17 Cable exit mat
4 Rubber seal 11 B type Flip plate 18 E type link-2
5 Lock bolt 12 A type flip plate 19 E type link-1 cable ways
6 Door clip 13 Flip bracket
7 Door clip connecting bracket 14 Fiber fixer





Specification



Model FDB0216W
Dimension(L*W*D) 274*175*82mm
Max capacity 1x8 micro mini plc splitter 2pcs
SC adapter 16pieces
Splice 16fibers
Environmental requirement

Working temperature:-40℃~+60℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KP~106Kpa
Main technical

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:>1000 times
Thunder-proof technical

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC)

IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover

;U≥3000V





More pictures show:

IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box 1

this box can do max 16pcs SC/UPC ,SC/APC adapters in 2 lines, and 2pcs 1X8 PLC Splitter Steel tube type.

Box is self-clip design,high strength, good protection to fiber and cables.



IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box 2IP65 Fiber Optic Splitter Box Black White PC Ftth Fiber Distribution Box 3

 white color Fiber Optic Termination Box              Black color Fiber Optic Splitter Box 16cores



Package information



Packing 500*450*400MM
Weight 20kgs
Quantity 10 pcs/box
Delivery Time 15 Days
