FTTA Defense ODC Male 4 Cores Fiber Optic Patch Cord LC Waterproof
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xapplication | fiber to the antenna,defense,Industry, Aerospace | cable | outoor waterproof |
---|---|---|---|
cable jacket | black LSZH | connector | LC FC ST SC available |
fiber count | 4 cores | length | on customer request |
logo | OEM | label | OEM |
Vurgulamak | fiber optic patch cable,fiber optic jumper |

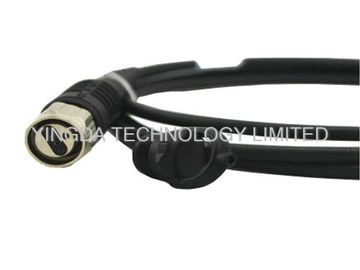

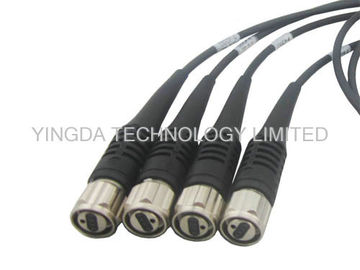

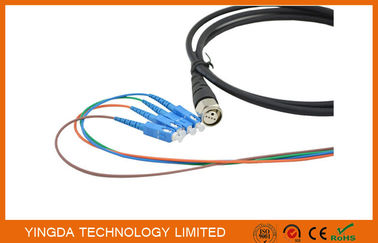

FTTA Defense ODC Male 4 Cores Fiber Optic Patch Cord LC Waterproof
Description:
The ODC Connector together with the far transmission cable, are becoming the standard interface
specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.
The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection
class IP67. They are well suited for Industrial and Aerospace and Defense applications.
Feature:
- Screwed locking mechanism, confirm the connection is long-term and reliable.
- Guide structure, can be installed blindly, simply and quickly.
- Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
- Compact appearance, robust and flexible.
- Sealing design through wall.
- Reduce the times of splicing.
Application
- Indoor and Outdoor applications
- Outdoor & Military communication equipment connection.
- Oil field, mine communication connection.
- Far transmission wireless base station.
- Video Surveillance system
- Optical fiber sensor.
- Railway signal control.
- Intelligent substation
ODC Cable structure
Specification
Insertion loss |
≤0.8dB |
Repeat ability |
≤0.5dB |
Fiber core |
2 |
Mating times |
≥500N |
Working temperature |
-40~+85°C |
