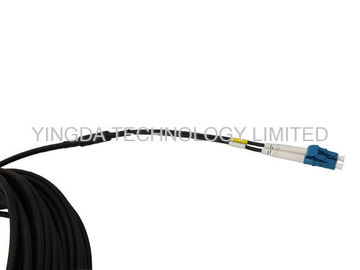

Duplex DLC LC Fiber Optic Patch Cord Leads 5.0mm 2 Core Optical Cable Assembly
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xapplication | FTTA outoor waterproof | cable | base station cable 5.0mm GYFJH |
---|---|---|---|
cable jacket | black LSZH | connector | LC/UPC |
fiber count | 2 fibers | length | on customer request |
logo | OEM | ||
Vurgulamak | fiber optic patch cable,fiber optic jumper |

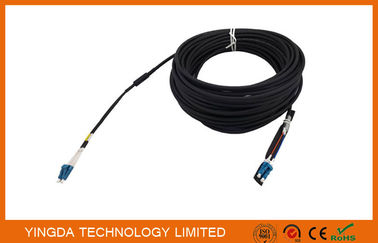

Duplex DLC LC Fiber Optic Patch Cord Leads 5.0mm 2 Core Optical Cable Assembly
1. GYFJH Cable
1.1 Structure:
FTTA RRU Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station
Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with
7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket.
Features
- Good mechanical and environmental characteristics;
- Flame retardant characteristics meet the requirements of relevant standards;
- The mechanical characteristics of jacket meet the requirements of relevant standards;
- Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data
- transmission;
- Meet various requirements of market and clients;
Applications
- BBU, RRU, RRH, LTE
- Indoor/outdoor application
- FTTH, FTTA application
- Mainly used in wireless base station horizontal and vertical cabling
Connector specification
Item |
Parameter |
Connector |
DLC/UPC |
Insertion loss |
≤0.3dB |
Return loss |
≥35dB |
Fiber mode |
Multi-mode,50/125um |
Operating wavelength |
850nm,1310nm |
Test wavelength |
850nm,1310nm |
Repeat ability |
≤0.1dB |
Interchange ability |
≤0.2dB |
Durability |
≤0.2dB |
Fiber length |
1m,2m.. Any length optional |
Length and tolerance |
10cm |
Operating temperature |
-40~+85°C |
Storage temperature |
-40~+85°C |
