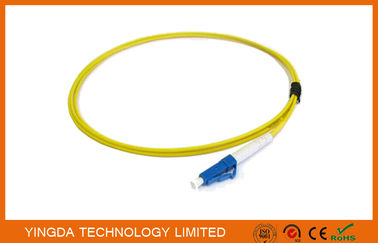

Single Mode Optical Fiber Pigtails LC PC Simplex 2.4 mm Diameter 3 Meter

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO
Model numarası FPG-LC-OS2-09-1-y
Min sipariş miktarı 100 PCS
Fiyat Negotiable
Ambalaj bilgileri 1pc in a plastic bag, customer logo or label design ok

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Fiber type singlemode fiber count simplex
cable type fiber optic cable diameter 2.4 mm
cable length 1 meter connector boot blue and white
polish mode UPC connector LC
cable color YELLOW OEM OK
ferrule ceramic
Vurgulamak

fiber optik helezon

,

ribbon pigtail

Mesaj bırakın
Ürün Açıklaması

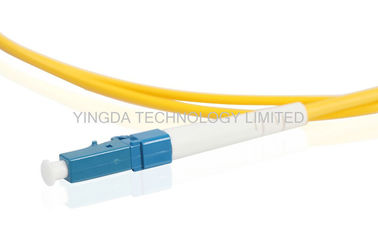

Single Mode Optical Fiber Pigtails LC PC Simplex 2.4 mm Diameter 3 Meter

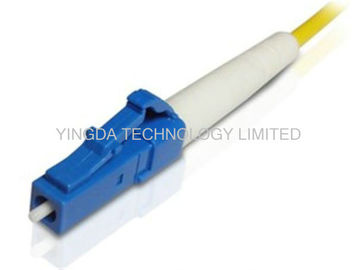

LC Fiber Optic Pigtail are a small form factor fiber optic Pigtail. Lucent Technologies first developed

 the LC Pigtail for TelCo environment uses. Hence, LC stands for Lucent Pigtails. LC fiber Pigtails

have been standardized as FOCIS 10 (Fiber Optic Pigtail Intermate-ability Standards) in EIA/TIA-604-10.

LC Fiber Optic Pigtail use a 1.25 mm ferrule, half the dimension of the ST ferrule or a regular ceramic

ferrule Pigtail. LC gives excellent performance and is greatly preferred for single mode transmission.



The LC Unibody is fully compatible with the original LC family of single-mode and multimode Pigtails,

adapters and associated components, manufactured under a worldwide license from OFS Fitel. The

Unibody features a compact, pull-proof design with RJ-45 style interface, and features a one-piece

molded housing with internal strength member, for significantly improved 90 side-pull performance

under Telcordia GR-326-CORE testing. It is manufactured using a ruggedized material that results

in a latch trigger up to four times stronger than average.



YINGDA offer all kinds of pigtails: SC FC LC ST MU MTRJ, E2000, D4, DIN, etc. welcome inquiry.



Features

  • Insertion Loss low
  • High Return Loss
  • Good Repeat ability
  • Good Exchange ability
  • High Temperature Stability
  • Comply with YD/T 1272.4-2007 specification
  • 8 Degree Angled physical contact polishing (APC)



Specification



Connector type

LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.

MU/AP Duplex MTRJ/Female, MTRJ/Male

Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

 (Multi-mode) 50/125um OM1, 62.5/125um OM2

& 50/125um, 10G OM3, OM4

Cable Type

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm,

Φ0.6mm buffered fiber

PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Single mode Master);

 ≤ 0.25dB (For Single mode Standard) ;

≤ 0.25dB (For Multi-mode) ;

Tested by JDS RM 3750

Return Loss

(For Single mode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeat ability

±0.1dB

Operating Temperature

-40°C to 85°C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

 7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1





Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX networks



Ordering Information


LC / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH

   ①  ②      ③              ④         ⑤          ⑥    ⑦



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
