SC Adaptörleri ile Dome Fiber Optik Bölücü Kutusu SC Adaptörleri ile 4 Port
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xKablo Bağlantı Noktaları | 4 port | Kablo çapı | 2 × Ø20 mm; 2 × Ø40 mm |
---|---|---|---|
Renk | siyah | Boyut | 510 * 250mm |
Yükleme yöntemi | duvar montajı, direk montajı, baca, yeraltı, anten | Splitter | 1x1: 16 bloke olmayan PLC splitter veya 1x1: 16 or2 * 1: 8 çıplak PLC splitter. |
Bağdaştırıcı | mak. 18 adet SC | Damla kablo | mak. 18 adet 2 * 3.0 mm |
Splice tepsi | mak. 5adet | Max kapasite | 120 Elyaf |
Vurgulamak | Fiber optik kablo bağlantı kutusu,fiber optik kablo eklem kutusu |

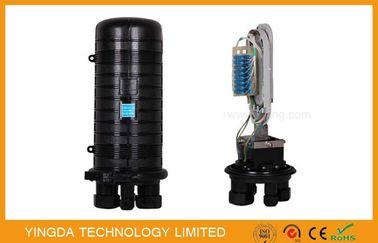

FOSC Enclosure, Dome Fiber Optic Splitter Box With SC Adapters
Fiber optic splice closure ( short FOSC) called fiber optic junction box or enclosures.
It is the cable terminated access point, then connect with optical switch through the
optical fiber jumper.
Features:
- The closure adopts mechanical sealing structure.There is one oval shaped cable port
- entrances in base. The big entrance is used for the sealing of uncut straight-through
- fiber cable, the small ports are used for branch fiber cable and drop cable.
- To adopt engineering PC plastic with high-strength to make the closure has longer life time
- and excellent sealing performance.
- It can be installed one 1:16 blockless PLC splitter in max. One 1:16 or two 1:8 bare PLC splitter.
- There are different drop cable elements to be chosen (Φ5,2*3). Max. 18pcs drop cable input/output
- (special type Can be customized).
- The patented sealing structure keep good sealing performance after re-entry and re-using.
- It could save the installation time and improve work efficiently.
Applications:
- Suitable for bunchy fibers
- Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
- It’s especially applicable to FTTH optical fiber distribution
Specification
Model no. |
Splice Tray Capacity |
Wiring mOdule Qty & Max. Qty |
Splitter Tray Max. |
Type of Adaptor & Max. Qty |
Max. Capacity |
GJS-2001 I (Bunchy) |
5 pcs (12-24f per tray) |
None |
1 |
None |
120F |
GJS-2001 II (Bunchy) |
2 pcs (12-24f per tray) |
1 |
1 |
SC 18 pcs |
48F |
Cable Structure
