12 Port Fiber Optic Patch Panel

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO SGS ROHS
Model numarası GPSM-2SC12
Min sipariş miktarı 100 pcs
Fiyat negotiable
Ambalaj bilgileri 1pc / box, 5 pcs / carton box
Teslim süresi 5-8days after payment
Yetenek temini 500,000 pcs per month

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
material cold rolled steel color black
capacity 24 fibers adapter SC duplex 12pcs
cable ports 4 pcs application FTTH FTTX FTTB ODN LAN WAN network
dimension 430*300*1U or 430*250*1U thickness 1.0mm
Vurgulamak

rack mount odf

,

optik dağıtım çerçeve

Mesaj bırakın
Ürün Açıklaması

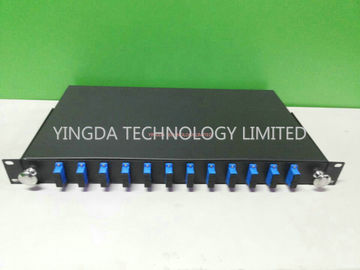

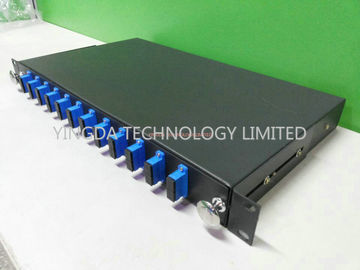

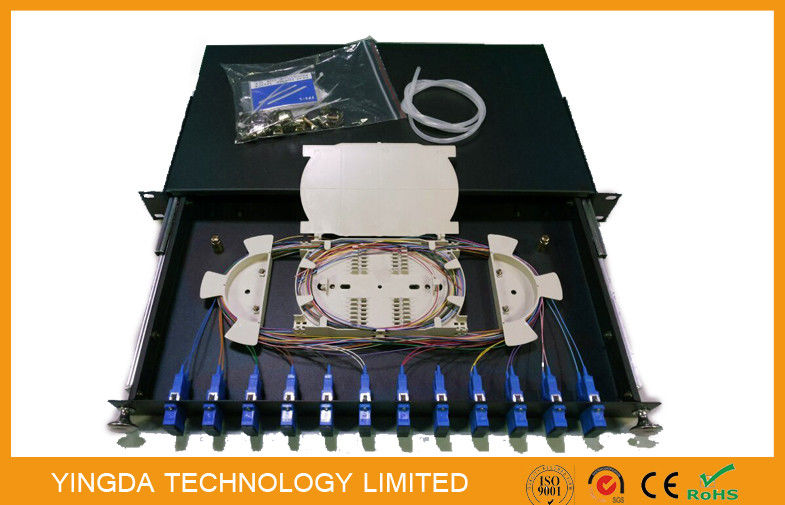

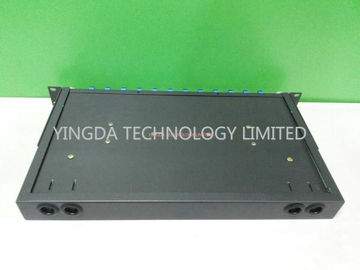

19” SC Sliding Patch Panel, 12 Port Fiber Optic Patch Panel SC Duplex





GPSM series can be applied in branch connection of optical cable termination;

  1. Made of spray the surface of cold rolled sheet
  2. 19inch standard structure
  3. sliding design
  4. rack mount
  5. Suitable for SC FC LC ST adapters



Features

  1. protection cable and wiring pigtail connection
  2. make cable components and the box body insulate,easy to lead ground.
  3. to provide cable terminal place and the remaining fiber storage space, convenient
  4. installation and operation
  5. With strong impact strength box body, convenient in different places to install
  6. wall mount,rack mount or, directly placed in the groove
  7. not suitable used in the open air (outdoor), if you want to use, please use the
  8. corresponding protection measures
  9. single fiber splice tray capacity: 24 core



Technical characteristics:

  • service life: 20 years
  • Insulation resistance: ≥ 2×104MΩ (test voltage: 500VDC)
  • withstand voltage strength: 1min no breakdown, no arcing phenomena under 15KV DC
  • Fire-retardant class: UL94 VO 70Kpa-106Kpa



Working environment:

  1. Environmental temperature: -40  -+80°C
  2. Relative humidity: ≤85% (+30°C)
  3. Atmospheric pressure: protection level (EN60529): IP54, IP58.

Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton

(pc)

G.w

(kg)

GPSM-1U-SC12

430*300*1U

12

485*420*350

5

29

GPSM-1U-FC24

24

485*420*350

5

29

GPSM-1U-2SC24

48

485*420*350

5

29

GPSM-2U-FC48

430*300*2U

48

500*355*550

4

26.5

GPSM-4U

130*300*4U

192

500*350*540

1

18.9
