Test Equipment Male To Female FC / PC Fiber Optic Attenuator 15dB 1310nm 1550nm

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO
Model numarası ATTN-FCS-01-B15
Min sipariş miktarı 100PCS
Fiyat Negotiable
Ambalaj bilgileri 1 pc / plastoc bag
Teslim süresi 3-5 days
Ödeme koşulları T/T or western Union
Yetenek temini 50,000pcs per month

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Attenuation 15dB test wavelength 1310nm, 1550nm
body material metal Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode,multimode
industry standard Telcordia TA-NWT-001209 connector type SC FC LC ST E2000 MU
dust cap color white connector shape male to female
Vurgulamak

build out attenuator

,

optical fiber attenuator

Mesaj bırakın
Ürün Açıklaması

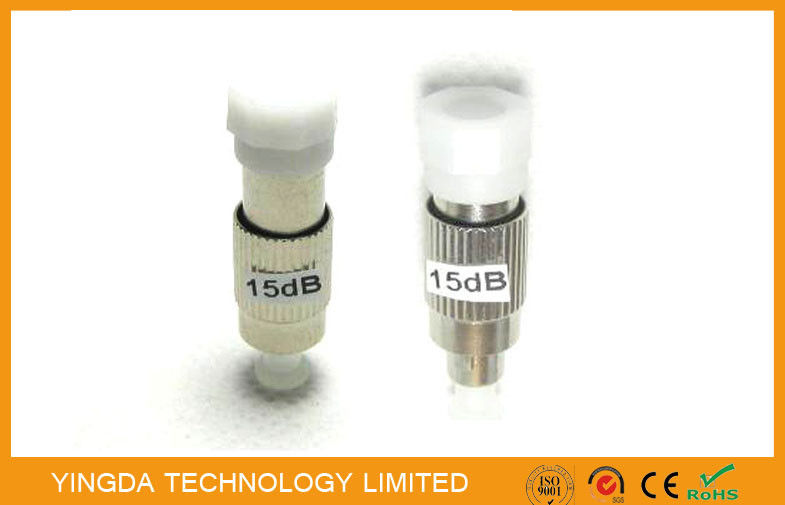

1 pc / Bag FC Male To Female Attenuator ( FC M-F ),  FC/PC Fiber Optic Attenuator 15dB





Optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety of

optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the

adapter and attenuator both functions.





YINGDA TECHNOLOGY LIMITED provide high quality of Male to Female Plug-in type fixed optical

attenuator, attenuation value 1dB ~ 20dB,use imported fiber with light absorbing metal ion, with

superior environmental stability and low reflectivity. The front end of attenuator is the male head,

can directly insert into the adapter of the receiving equipment or distribution panel. Its back-end

is female connector, connect with the jumper .



Male and female type (M-F) optical fiber attenuator has SC, FC, ST, LC, MU,E2000 etc.





Features:

  1. Bellcore GR-326-CORE Compliant
  2. Wavelength Independent (DWDM)
  3. Durability (well over 100mw)
  4. Simple and Reliable Structure

Application



1. Optic-fiber Communication Systems

2. Optical Fiber Sensor

3. Optical Fiber Test Equipment

4. Optic-fiber CATV and Video

5. Telecommunication Networks

6. Data transmission



Specification



Item

Standard

Wavelength Flattened

Broadband

Operating Wavelength(nm)

1310 or 1550

1310/1550

Bandwidth(nm)

±20

±40

Attenuation value (dB)

1~30

Return Loss (dB)

≥40

Operating Temperature oC

-40~+85

Storage Temperature oC

-40~+85

Industry Standard

Telcordia TA-NWT-001209
